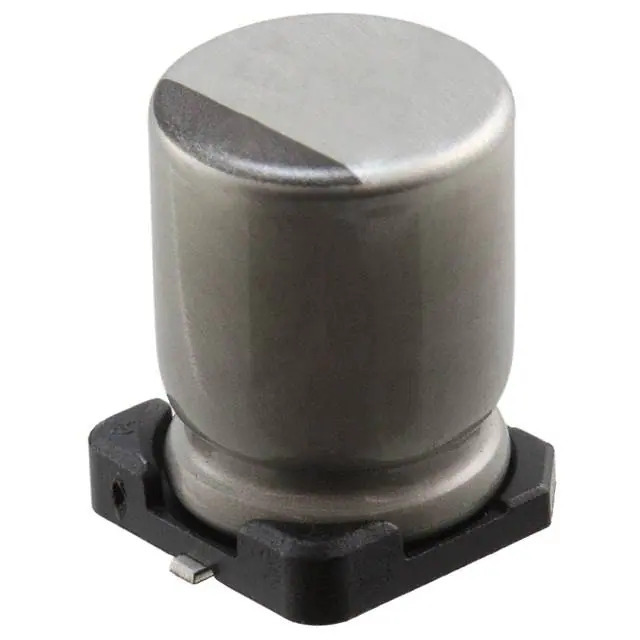

ULR2G4R7MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

ULR2G4R7MNL1GS

Part No ULR2G4R7MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 4.7UF 20% 400V SMD / 4.7 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C
Datasheet
ULR2G4R7MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series ULR
Package Tape & Reel
Product Status Active
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 35 mA @ 120 Hz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360177-ULR2G4R7MNL1GS
Ultra Librarian 3D Model Ultra Librarian ULR2G4R7MNL1GS CAD Model

Description

The 1360177-ULR2G4R7MNL1GS is a surface mount aluminum electrolytic capacitor from Nichicon's ULR series.

  • Capacitance: 4.7 µF
  • Voltage - Rated: 400 V
  • Applications: General Purpose
  • Tolerance: ±20%
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • Operating Temperature: -40°C ~ 105°C
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.315" (8.00mm)
  • Height - Seated (Max): 0.433" (11.00mm)
