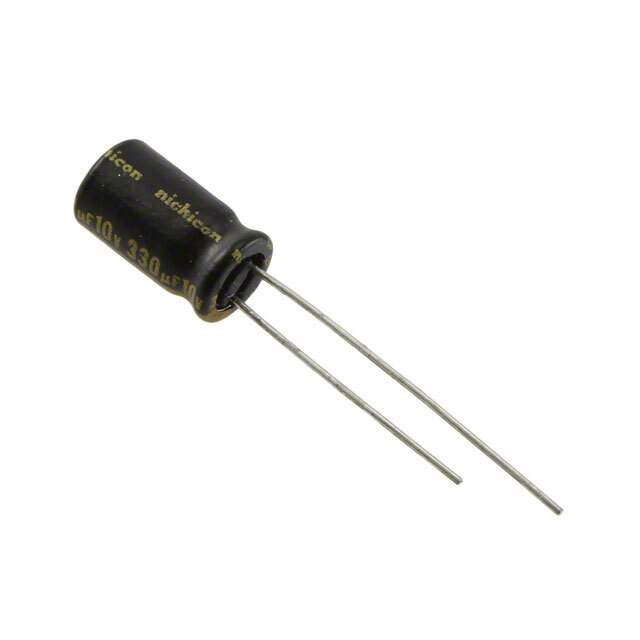

Same model may have multiple batches, images only for reference.

UKW2A220MED

Name: UKW2A220MED
Brand: Nichicon
SKU: 1351766
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UKW2A220MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 100V RADIAL / 22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet	UKW2A220MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UKW
Package	Bulk
Product Status	Obsolete
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	Audio
Ripple Current @ Low Frequency	120 mA @ 120 Hz
Ripple Current @ High Frequency	240 mA @ 10 kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1351766-UKW2A220MED
Ultra Librarian 3D Model	Ultra Librarian UKW2A220MED CAD Model

Description

This aluminum electrolytic capacitor is part of the UKW series.

Series: UKW
Capacitance: 22µF
Voltage - Rated: 100V
Tolerance: ±20%
Ripple Current - Low Frequency: 120mA @ 120Hz
Ripple Current - High Frequency: 240mA @ 10kHz
Polarization: Polar
Package / Case: Radial, Can
Lead Spacing: 0.098" (2.50mm)
Height - Seated (Max): 0.433" (11.00mm)
Diameter: 0.248" (6.30mm)
Application: Audio
Lifetime @ Temp.: 2000 Hrs @ 85°C
Mounting Type: Through Hole
Packaging: Bulk
Standard Package: 200
