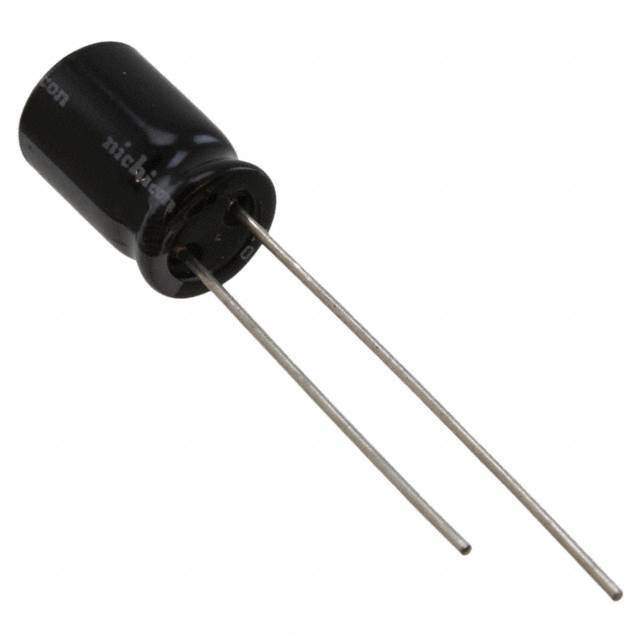

Same model may have multiple batches, images only for reference.

UKL1E101KPDANATD

Name: UKL1E101KPDANATD
Brand: Nichicon
SKU: 1338653
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UKL1E101KPDANATD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 10% 25V RADIAL / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet	UKL1E101KPDANATD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UKL
Package	Cut Tape (CT) Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	100 µF
Tolerance	±10%
Voltage - Rated	25 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	280 mA @ 120 Hz
Ripple Current @ High Frequency	420 mA @ 10 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	1,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1338653-UKL1E101KPDANATD
Ultra Librarian 3D Model	Ultra Librarian UKL1E101KPDANATD CAD Model

Description

The Nichicon UKL1E101KPDANATD is an aluminum electrolytic capacitor that has a capacitance of 100 µF and a tolerance of ±10%.

Capacitance: 100 µF
Tolerance: ±10%
Rated Voltage: 25V
Lead Spacing: 0.138" (3.50mm)
Package: Radial, Can
Size: 0.315" Dia (8.00mm)
Height: 0.492" (12.50mm)
Standard Package: 1,000
Application: General Purpose
Temperature Range: -40°C ~ 105°C
Lifecycle Status: Not For New Designs
