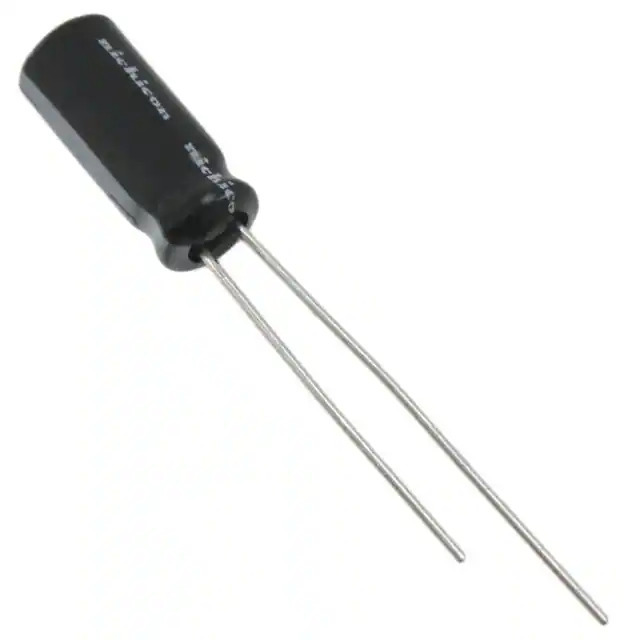

Same model may have multiple batches, images only for reference.

UHE1H010MDD

Get a Quote

Part No	UHE1H010MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1UF 20% 50V RADIAL / 1 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UHE1H010MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Obsolete
Capacitance	1 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	16.5 mA @ 120 Hz
Ripple Current @ High Frequency	30 mA @ 100 kHz
Impedance	4 Ohms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358267-UHE1H010MDD
Ultra Librarian 3D Model	Ultra Librarian UHE1H010MDD CAD Model

Description

The UHE1H010MDD is an aluminum electrolytic capacitor from Nichicon.

Series: UHE
Capacitance: 1 µF
Voltage Rating: 50 V
Temperature Range: -40°C to 105°C
Lifetime: 5000 hours @ 105°C
Package: Radial, Can
Mounting Type: Through Hole
Lead Spacing: 2.00mm
Size: 5.00mm Diameter
Ripple Current (Low Frequency): 16.5 mA @ 120 Hz
Ripple Current (High Frequency): 30 mA @ 100 kHz
REACH Status: Unaffected
ECCN: EAR99
Product Status: Obsolete
