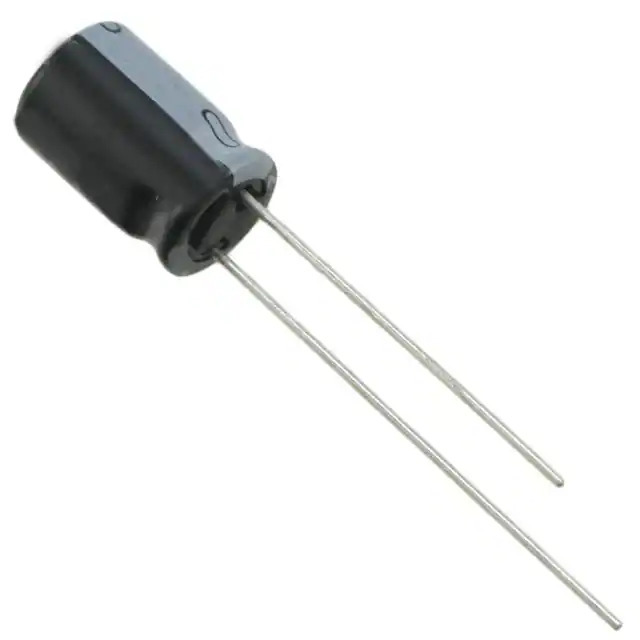

Same model may have multiple batches, images only for reference.

UHE1C331MPD

Name: UHE1C331MPD
Brand: Nichicon
SKU: 1358147
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHE1C331MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 16V RADIAL / 330 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet	UHE1C331MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Not For New Designs
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	448 mA @ 120 Hz
Impedance	130 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.453" (11.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358147-UHE1C331MPD
Ultra Librarian 3D Model	Ultra Librarian UHE1C331MPD CAD Model

Description

The UHE1C331MPD is a radial, can-type aluminum electrolytic capacitor from Nichicon's UHE series. It has a capacitance of 330 μF and a voltage rating of 16 V.

Capacitance: 330 μF
Voltage Rating: 16 V
Tolerance: ±20%
Ripple Current: 448 mA @ 120 Hz
Lead Spacing: 0.138" (3.50mm)
Diameter: 0.315" (8.00mm)
Height: 0.453" (11.50mm)
Lifetime: 7000 hours @ 105°C
Polarization: Polarized
Mounting Type: Through Hole
REACH Affected: No
ECCN: EAR99
For New Designs: No
Packaging: Bulk
