Same model may have multiple batches, images only for reference.

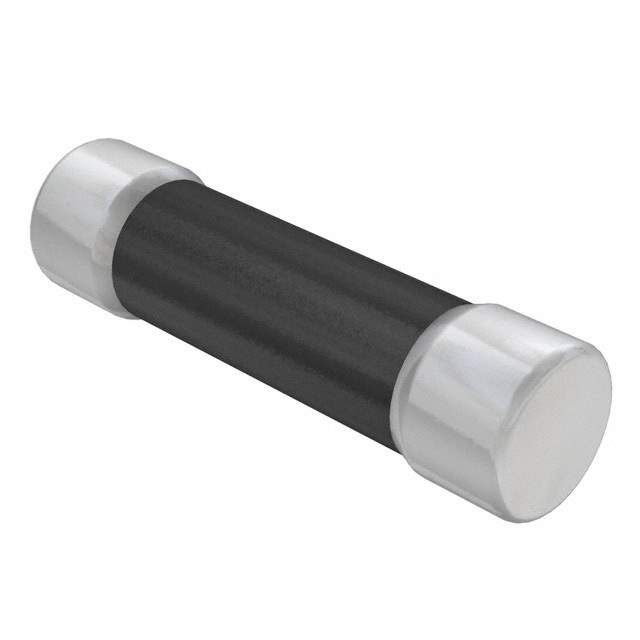

0SPF015.T Real Image
Same model may have multiple batches, images only for reference.

0SPF015.T

Part No 0SPF015.T
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 15A 1KVDC 5AG / 15A AC 1 kV DC Fuse Cartridge Holder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® SPF
Package Bulk
Mounting Type Holder
Fuse Type Cartridge
Current Rating (Amps) 15A
Voltage Rating - DC 1 kV
Response Time Fast Blow
Applications Solar (Photovoltaic)
Approval Agency CE, CSA, UL, VDE
Breaking Capacity @ Rated Voltage 20kA
Package / Case 5AG, 10mm x 38mm (Midget)
Dimension 0.406" Dia x 1.500" L (10.31mm x 38.10mm)
DC Cold Resistance 0.00799 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names SPF015,SPF 15,SPF 15A,-0SPF015.T,F5109,0SPF015.T-ND,SPF15,0SPF015T
Standard Package 10
Win Source Part Number 1008343-0SPF015.T
Ultra Librarian 3D Model Ultra Librarian 0SPF015.T CAD Model

Description

The POWR-GARD® SPF series fast blow cartridge fuse is designed to provide reliable circuit protection in solar (photovoltaic) applications and is manufactured by Littelfuse Inc.

  • Voltage Rating: 1 kV DC
  • Breaking Capacity @ rated voltage: 20kA
  • Current Rating: 15A
  • DC Cold Resistance: 0.00799 Ohms
  • Dimension: 0.406" Dia x 1.500" L (10.31mm x 38.10mm)
  • Package/Case: 5AG, 10mm x 38mm (Midget)
  • Operating Temperature Range: -40°C ~ 100°C (TJ)
  • Approval: CE, CSA, UL, and VDE
