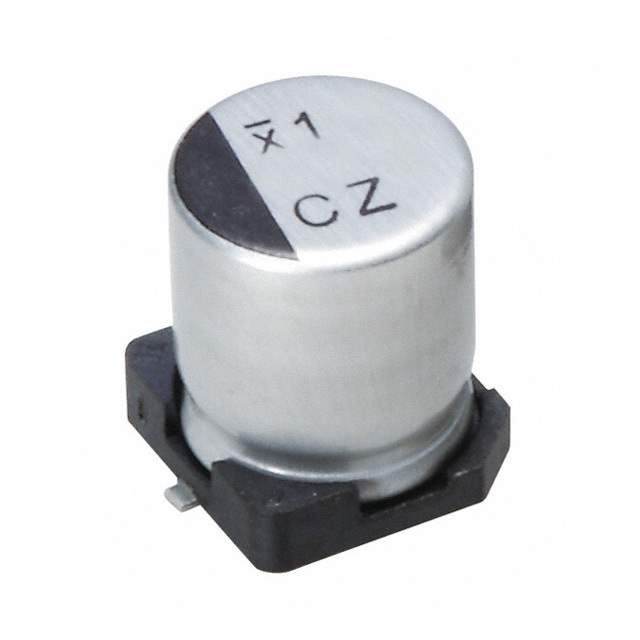

UCZ2A100MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UCZ2A100MCL1GS

Part No UCZ2A100MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 100V SMD / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 750mOhm 3000 Hrs @ 125°C
Datasheet
UCZ2A100MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCZ
Package Tape & Reel
Product Status Not For New Designs
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 750mOhm
Lifetime @ Temp. 3000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 35 mA @ 120 Hz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337185-UCZ2A100MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCZ2A100MCL1GS CAD Model

Description

The Nichicon UCZ2A100MCL1GS is an aluminum electrolytic capacitor used in various applications.

  • Packaging: Tape & Reel (TR)
  • Standard Package: 500
  • Capacitance: 10 µF
  • Tolerance: ±20%
  • Voltage - Rated: 100V
  • ESR (Equivalent Series Resistance): 750mOhm
  • Lifetime @ Temp.: 3000 Hrs @ 125°C
  • Polarization: Polarized
  • Mounting Type: Surface Mount
  • Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • MSL: 1 (Unlimited)
  • HTSUS: 8532.22.0020
