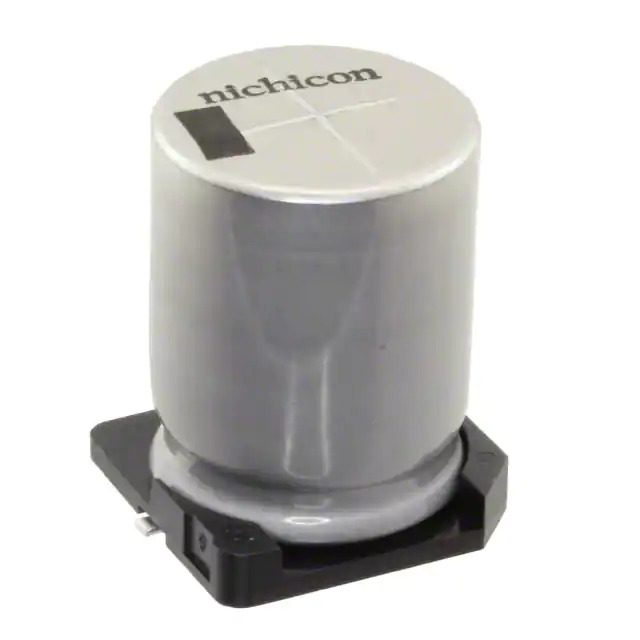

UCZ1V162MNQ1MS Nichicon
Same model may have multiple batches, images only for reference.

UCZ1V162MNQ1MS

Part No UCZ1V162MNQ1MS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1600UF 20% 35V SMD / 1600 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 47mOhm @ 100kHz 4000 Hrs @ 125°C
Datasheet
UCZ1V162MNQ1MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCZ
Package Tape & Reel
Product Status Not For New Designs
Capacitance 1600 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 47mOhm @ 100kHz
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.5 A @ 120 Hz
Ripple Current @ High Frequency 3 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.886" (22.50mm)
Surface Mount Land Size 0.673" L x 0.673" W (17.10mm x 17.10mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360207-UCZ1V162MNQ1MS
Ultra Librarian 3D Model Ultra Librarian UCZ1V162MNQ1MS CAD Model

Description

The UCZ1V162MNQ1MS is an aluminum electrolytic capacitor from Nichicon's UCZ series.

  • Capacitance: 1600 μF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Application: General Purpose
  • Ripple Current (Low Frequency): 1.5 A @ 120 Hz
  • Ripple Current (High Frequency): 3 A @ 100 kHz
  • Mounting: Surface Mount
  • Size: 0.630" in diameter
  • Height: 0.886"
  • Lifetime: 4000 hours @ 125°C
  • Polarization: Polarized
  • Package: Radial, Can - SMD
  • Recommendation: Not Recommended for New Designs
