Same model may have multiple batches, images only for reference.

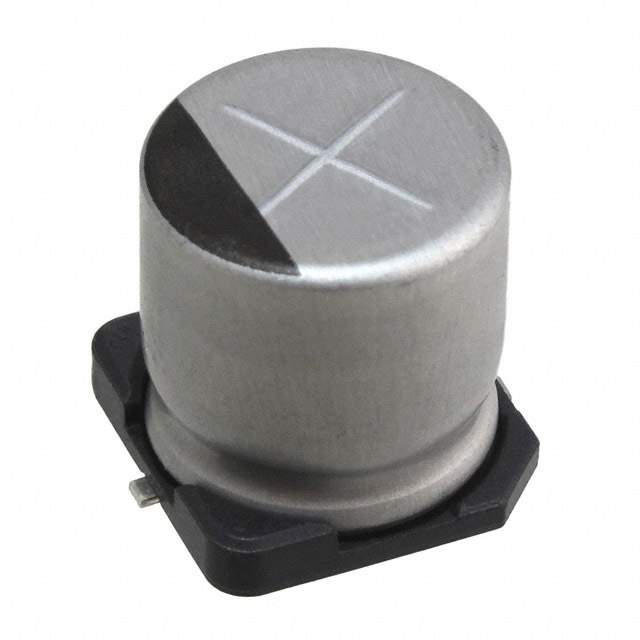

UCW1H221MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCW1H221MNL1GS

Part No UCW1H221MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 50V SMD / 220 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C
Datasheet
UCW1H221MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCW
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 335 mA @ 120 Hz
Ripple Current @ High Frequency 670 mA @ 100 kHz
Impedance 350 mOhms
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338689-UCW1H221MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCW1H221MNL1GS CAD Model

Description

This aluminum electrolytic capacitor is a high-quality component designed for general purpose use.

  • Capacitance: 220 µF
  • Voltage: 50 V
  • Series: UCW
  • Polarization: Polarized
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Standard Package: 500
  • Height: 0.394" (10.00mm) Seated
  • ESR: Not Specified
  • Impedance: 350 mOhms
  • Ripple Current @ Low Frequency: 335 mA @ 120 Hz
  • Ripple Current @ High Frequency: 670 mA @ 100 kHz
  • Lifetime @ Temperature: 7000 Hrs @ 105°C
  • Manufacturer: Nichicon
