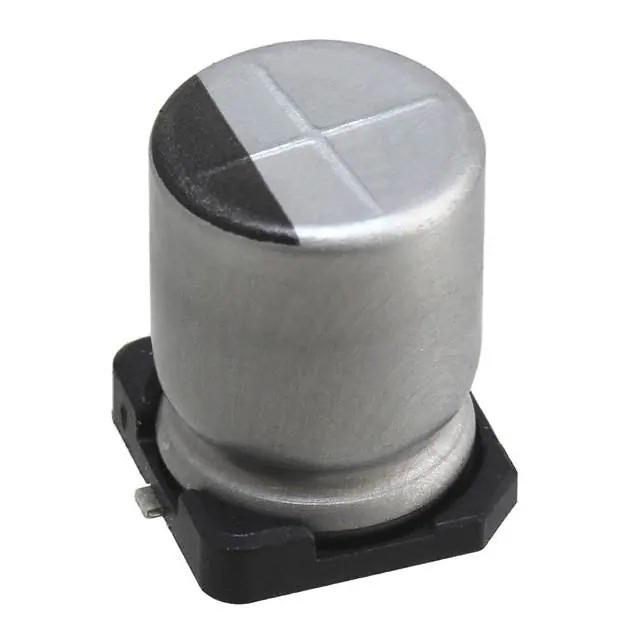

Same model may have multiple batches, images only for reference.
UCW1C331MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

UCW1C331MNL1GS

Part No UCW1C331MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 16V SMD / 330 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C
Datasheet
UCW1C331MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCW
Package Tape & Reel
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 220 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360278-UCW1C331MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCW1C331MNL1GS CAD Model

Description

The 1360278-UCW1C331MNL1GS is an aluminum electrolytic capacitor manufactured by Nichicon.

  • Series: UCW series
  • Capacitance: 330 μF
  • Tolerance: ±20%
  • Rated Voltage: 16 V
  • Application: General purpose
  • Ripple Current (Low Frequency): 300 mA @ 120 Hz
  • Ripple Current (High Frequency): 600 mA @ 100 kHz
  • Package: Radial, can - SMD
  • Mounting Type: Surface mountable
  • Size: 0.315" diameter (8.00mm)
  • Maximum Seated Height: 0.394" (10.00mm)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Lifetime: 7000 hours @ a maximum temperature of 105°C
  • Polarization: Feature
  • Impedance: 220 mOhms
  • Status: Active
  • REACH Compliance: Affected by REACH regulations
