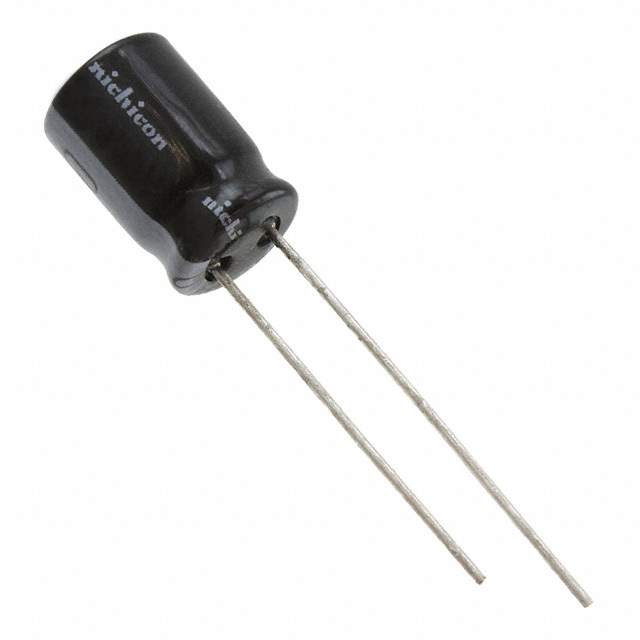

The UHV1V221MPD is an aluminum electrolytic capacitor manufactured by Nichicon. It is part of the UHV series, which is designed for high-voltage applications requiring long life and high reliability. This specific part has a capacitance of 220µF (microfarads) and a voltage rating of 35V. These are radial leaded components.

Applications

• Power Supplies: Smoothing and filtering DC voltage in power supplies.
• Inverters: Providing DC link capacitance in inverters.
• Audio Amplifiers: Filtering power supply noise and coupling signals.
• Industrial Equipment: Providing reliable energy storage in industrial systems.
• LED Lighting: Smoothing ripple current in LED drivers.

Features

• High Voltage Rating: Suitable for circuits with higher operating voltages.
• Long Life: Designed to provide extended operational life.
• High Ripple Current Capability: Can withstand high ripple currents without degradation.
• Radial Lead Design: Enables easy through-hole mounting on PCBs.
• RoHS Compliant: Meets environmental regulations.

Benefits

• Reliable Performance: Aluminum electrolytic capacitors offer stable capacitance.
• Long Lifespan: Reduces the need for frequent replacements.
• Stable Operation: High ripple current capability ensures stable operation.
• Easy Installation: Radial leads simplify assembly.
• Cost-Effective: Provides a good balance of performance and price.

Additional Details

Aluminum electrolytic capacitors are polarized components and must be connected with the correct polarity to avoid damage. The operating temperature range is a critical parameter to consider, typically -40°C to +85°C or wider, though performance may be derated at higher temperatures. The ESR (Equivalent Series Resistance) is another important specification, influencing the capacitor's ability to handle ripple current. Consult the manufacturer's datasheet for complete specifications, including ESR, ripple current rating, leakage current, and operating temperature derating curves to ensure proper application and long-term reliability. The tolerance is typically ±20%.
