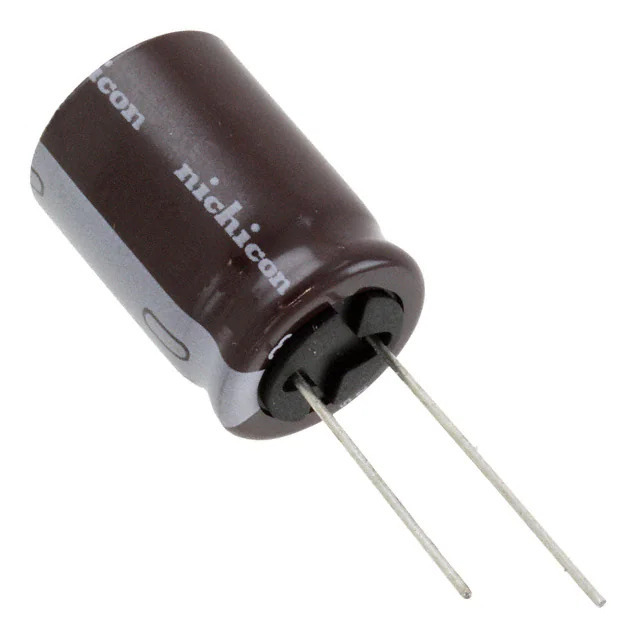

Same model may have multiple batches, images only for reference.

UCS2G820MHD

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCS2G820MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 82UF 20% 400V RADIAL / 82 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet	UCS2G820MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCS
Package	Bulk
Product Status	Active
Capacitance	82 µF
Tolerance	±20%
Voltage - Rated	400 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	762.5 mA @ 120 Hz
Ripple Current @ High Frequency	1.525 A @ 100 kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1354633-UCS2G820MHD
Ultra Librarian 3D Model	Ultra Librarian UCS2G820MHD CAD Model

Description

The UCS2G820MHD is an aluminum electrolytic capacitor from Nichicon's UCS series.

Series: UCS
Application: General Purpose
Capacitance: 82 μF
Tolerance: ±20%
Rated Voltage: 400 V
Ripple Current (Low Frequency): 762.5 mA @ 120 Hz
Ripple Current (High Frequency): 1.525 A @ 100 kHz
Package: Radial, Can
Mounting Type: Through Hole
Size: 0.709" Diameter
Maximum Seated Height: 1.043"
Lifetime: 10,000 Hrs @ 105°C
REACH: Unaffected
ECCN: EAR99
Polarization: Polar
Lead Spacing: 0.295" (7.50mm)
