Same model may have multiple batches, images only for reference.

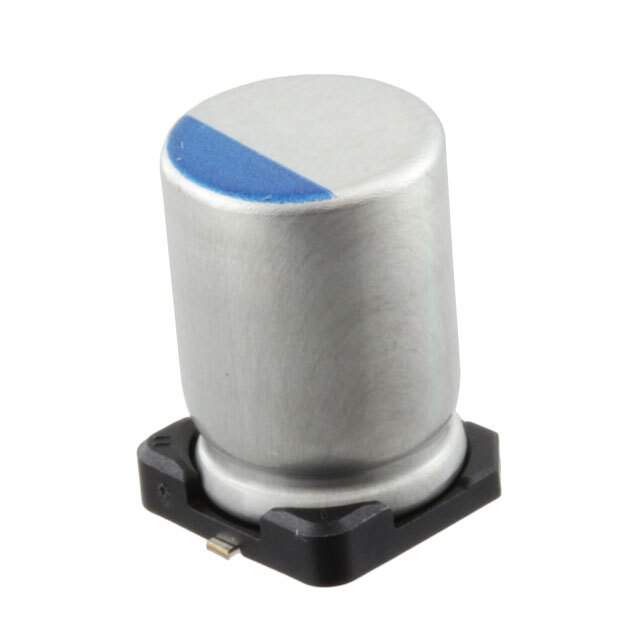

UCJ1H101MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UCJ1H101MCL1GS

Part No UCJ1H101MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.5Ohm 2000 Hrs @ 125°C
Datasheet
UCJ1H101MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCJ
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 1.5Ohm
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 165 mA @ 120 Hz
Ripple Current @ High Frequency 330 mA @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351998-UCJ1H101MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCJ1H101MCL1GS CAD Model

Description

The UCJ1H101MCL1GS is an aluminum electrolytic capacitor from Nichicon. Nichicon

  • Capacitance: 100μF
  • Voltage: 50V
  • Package: Radial, Can - SMD
  • Diameter: 0.394 inches
  • Mounting: Surface Mount
  • Land Size (L x W): 0.406 inches x 0.406 inches
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 125°C
  • ESR: 1.5 ohms
  • Ripple Current: 165mA @ 120Hz, 330mA @ 100kHz
  • Application: General-Purpose
