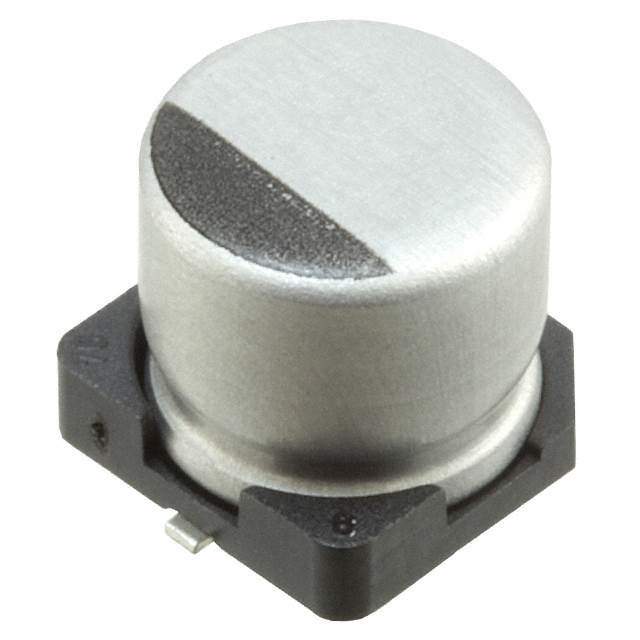

Same model may have multiple batches, images only for reference.

UCD1V330MCL1GS

Name: UCD1V330MCL1GS
Brand: Nichicon
SKU: 1328674
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UCD1V330MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 35V SMD / 33 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Nichicon
Packaging	Reel - TR
Product Status	Not For New Designs
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120 mA @ 120 Hz
Ripple Current @ High Frequency	240 mA @ 100 kHz
Impedance	360 mOhms
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	UCD1V330MCL1GS-ND,493-6424-2,493-6424-1,493-6424-6
Standard Package	1,000
Win Source Part Number	1328674-UCD1V330MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1V330MCL1GS CAD Model

Description

The UCD1V330MCL1GS from Nichicon is an aluminum electrolytic capacitor with a diameter of 0.248 inches and a height of 0.240 inches.

Capacitance: 33 µF
Tolerance: ±20%
Voltage Rating: 35V
Impedance: 360 mOhms
Ripple Current: 120 mA @ 120 Hz and 240 mA @ 100 kHz
Lifetime: 2000 Hrs @ 105°C
Polar: Yes
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Temperature Range: -55°C to 105°C
ROHS3 Compliant: Yes
