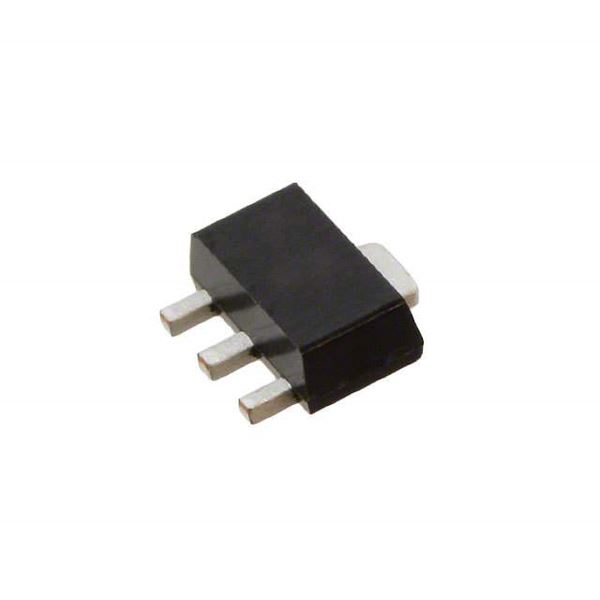

MMG3002NT1 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MMG3002NT1

Part No MMG3002NT1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC AMP RF GP 3600MHZ 5.2V SOT-89
Datasheet
MMG3002NT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Not For New Designs
Frequency 40MHz to 3.6GHz
P1dB 21dBm (125.9mW)
Gain 20dB
Noise Figure 4.2dB
RF Type General Purpose
Supply Voltage - Operating 5.2V
Operating Supply Current 110mA
Test Frequency 900MHz
Case / Package SOT-89-4
Win Source Part Number 023920-MMG3002NT1
Ultra Librarian 3D Model Ultra Librarian MMG3002NT1 CAD Model

Description

The NXP MMG3002NT1 is an electronic component with a test frequency of 900MHz and a frequency range of 40MHz to 3.6GHz.

  • Gain: 20dB
  • Noise figure: 4.2dB
  • P1dB: 21dBm (125.9mW)
  • Application: General purpose RF applications
  • Supply voltage: 5.2V
  • Operating supply current: 110mA
  • Case/package: SOT-89-4
  • Status: Not for new designs.
