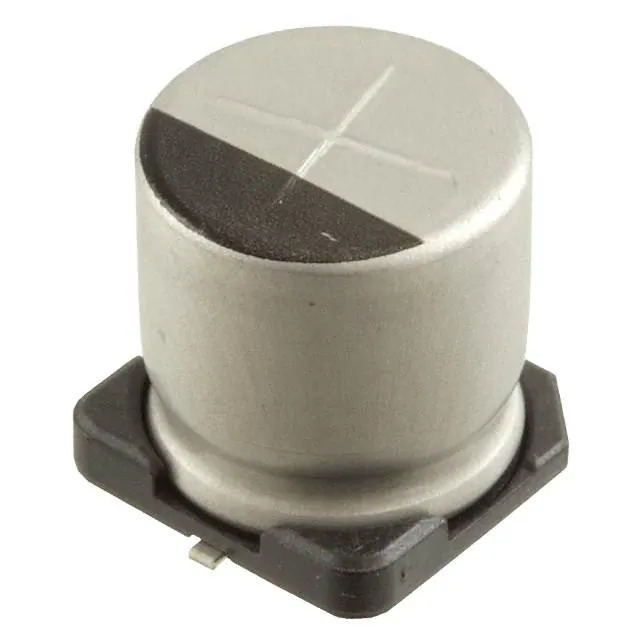

UCD1H101MCL6GS Nichicon
Same model may have multiple batches, images only for reference.

UCD1H101MCL6GS

Part No UCD1H101MCL6GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCD1H101MCL6GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 165 mA @ 120 Hz
Ripple Current @ High Frequency 330 mA @ 100 kHz
Impedance 360 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.323" (8.20mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360155-UCD1H101MCL6GS
Ultra Librarian 3D Model Ultra Librarian UCD1H101MCL6GS CAD Model

Description

The UCD1H101MCL6GS is a radial, surface mount aluminum electrolytic capacitor from Nichicon. It has a capacitance of 100 μF and a voltage rating of 50 V.

  • Capacitance: 100 μF
  • Voltage Rating: 50 V
  • Temperature Range: -55°C to 105°C
  • Automotive Grade: Yes
  • Ripple Current (Low Frequency): 165 mA @ 120 Hz
  • Ripple Current (High Frequency): 330 mA @ 100 kHz
  • AEC-Q200: Rated
  • Size: 0.394" diameter
  • Height: 0.323"
  • Lifetime: 2000 hours @ 105°C
  • Packaging: Tape and Reel
  • Polarity: Polarized
  • Tolerance: ±20%
  • ESR: 360 mOhms
  • Mounting Type: Surface Mount, Radial
  • Series: UCD
  • Manufacturer: Nichicon
