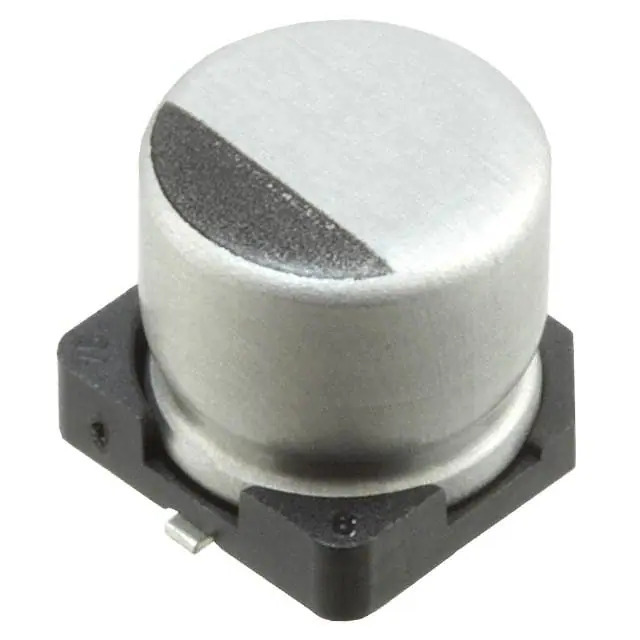

Same model may have multiple batches, images only for reference.

UCD1E680MCL1GS

Name: UCD1E680MCL1GS
Brand: Nichicon
SKU: 1360162
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1E680MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 68UF 20% 25V SMD / 68 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCD1E680MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Product Status	Active
Capacitance	68 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120 mA @ 120 Hz
Ripple Current @ High Frequency	240 mA @ 100 kHz
Impedance	360 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360162-UCD1E680MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1E680MCL1GS CAD Model

Description

The UCD1E680MCL1GS is an aluminum electrolytic capacitor manufactured by Nichicon.

Series: UCD
Application: Automotive
Capacitance: 68µF
Voltage Rating: 25V
Tolerance: ±20%
ESR: Not Specified
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Size: 0.248" Dia (6.30mm)
Height: 0.240" (6.10mm)
Operating Temperature: -55°C to 105°C
Lifetime: 2000 hours @ 105°C
Polarization: Polarized
Impedance: 360 mOhms
