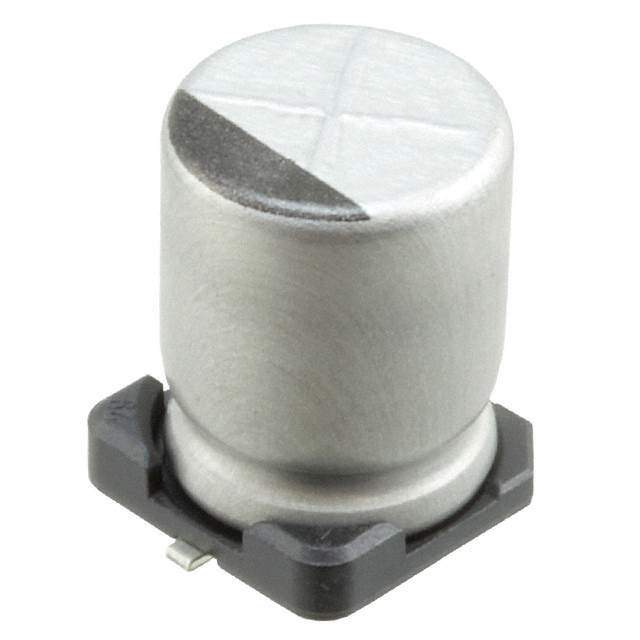

Same model may have multiple batches, images only for reference.

UCD1C471MNL1GS

Name: UCD1C471MNL1GS
Brand: Nichicon
SKU: 1350075
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1C471MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 16V SMD / 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet	UCD1C471MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	300 mA @ 120 Hz
Ripple Current @ High Frequency	600 mA @ 100 kHz
Impedance	160 mOhms
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1350075-UCD1C471MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1C471MNL1GS CAD Model

Description

The UCD series aluminum electrolytic capacitor from Nichicon is a reliable and cost-effective solution for automotive applications.

Capacitance: 470 µF
Voltage Rating: 16 V
Impedance: 160 mOhms
Ripple Current (Low Frequency): 300 mA @ 120 Hz
Ripple Current (High Frequency): 600 mA @ 100 kHz
Mounting Type: Surface Mount
Package: Radial Can - SMD
Diameter: 0.315" (8.00mm)
Height: 0.413" (10.50mm)
Package Type: Tape and Reel
Standard Package: 500
