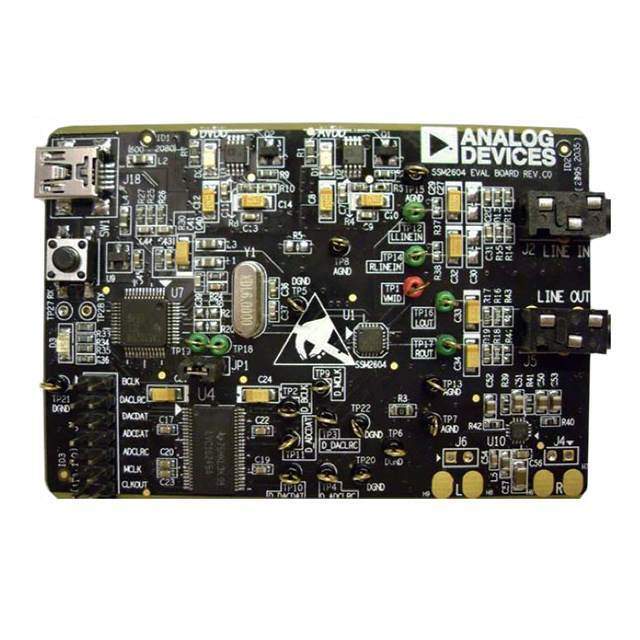

The SSM2604-EVALZ is a comprehensive evaluation platform from Analog Devices Inc., designed to facilitate the assessment and application development of the SSM2604 Low Power Audio Codec. This codec integrates a complete audio DAC and ADC with a flexible interface, making it an excellent choice for a wide range of audio applications.

Key Features

• High-Quality Audio Performance: The SSM2604 codec delivers superior audio quality with a 98 dB signal-to-noise ratio (SNR) for DAC and 93 dB SNR for ADC, ensuring pristine audio reproduction.
• Low Power Consumption: Designed with power-sensitive applications in mind, the codec operates with low power consumption, making it ideal for portable and battery-operated devices.
• Flexible Digital Interfaces: The SSM2604-EVALZ supports I2S, left-justified, and right-justified serial data interfaces, providing versatility for integration with various microprocessors and DSPs.
• Adjustable Sampling Rates: The evaluation board supports multiple sampling rates, including 8 kHz, 32 kHz, 44.1 kHz, and 48 kHz, accommodating a range of audio applications from telephony to high-fidelity music playback.
• On-Board Clock Generation: An on-board crystal oscillator is provided for standalone operation, simplifying the evaluation process and reducing the need for external components.

Applications

The SSM2604-EVALZ is suitable for a variety of applications, including:

• Portable and handheld audio devices
• Multimedia speakers and docking stations
• Audio interfaces and sound cards
• Consumer electronic audio systems
• Automotive audio systems

Package Contents and Support

The evaluation board package includes the SSM2604-EVALZ board, documentation, and software for operation. Users can access comprehensive technical support and resources on the Analog Devices Inc. website, including datasheets, reference designs, and application notes to expedite the development process.

With its high-quality audio performance, low power consumption, and flexible interface options, the SSM2604-EVALZ from Analog Devices Inc. is an essential tool for engineers and designers looking to explore the capabilities of the SSM2604 codec and develop cutting-edge audio solutions.
