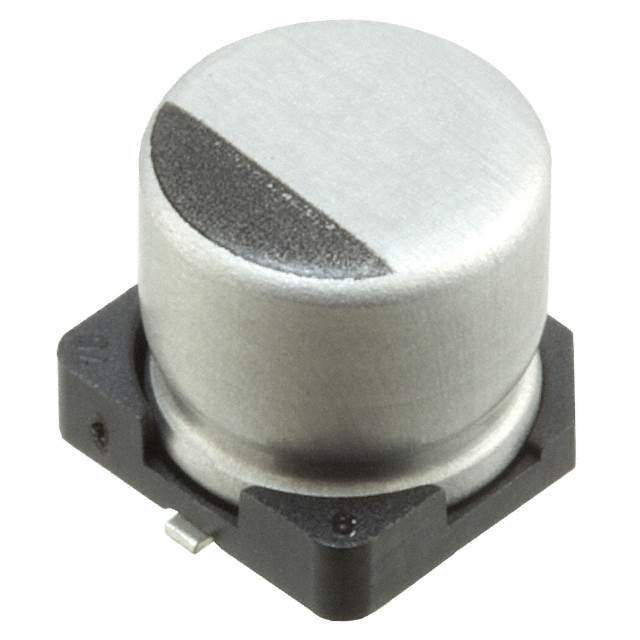

Same model may have multiple batches, images only for reference.

UCD1C470MCL1GS

Name: UCD1C470MCL1GS
Brand: Nichicon
SKU: 1339372
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1C470MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 16V SMD / 47 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCD1C470MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120 mA @ 120 Hz
Ripple Current @ High Frequency	240 mA @ 100 kHz
Impedance	360 mOhms
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339372-UCD1C470MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1C470MCL1GS CAD Model

Description

The Nichicon UCD series aluminum electrolytic capacitors are designed for automotive applications.

Part Number: UCD1C470MCL1GS
Capacitance: 47µF
Voltage - Rated: 16V
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Standard Package: 1,000
Mounting Type: Surface Mount
Ripple Current: 120mA @ 120Hz
Impedance: 360mOhms
Lifetime @ Temp.: 2000 Hrs @ 105°C
Polarization: Polar
Surface Mount Land Size: 0.260” L x 0.260” W (6.60mm x 6.60mm)
Operating Temperature: -55°C to 105°C
AEC-Q200: Yes
