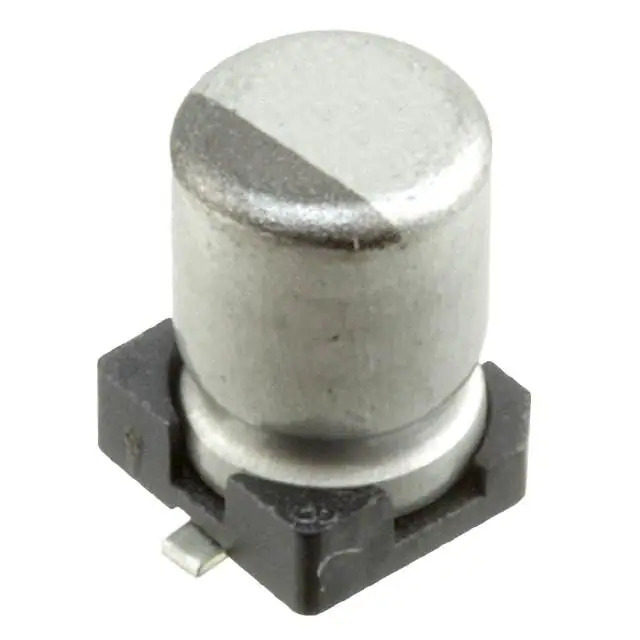

UCD1C220MCL6GS Nichicon
Same model may have multiple batches, images only for reference.

UCD1C220MCL6GS

Part No UCD1C220MCL6GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 16V SMD / 22 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCD1C220MCL6GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 45 mA @ 120 Hz
Ripple Current @ High Frequency 90 mA @ 100 kHz
Impedance 1.35 Ohms
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360165-UCD1C220MCL6GS
Ultra Librarian 3D Model Ultra Librarian UCD1C220MCL6GS CAD Model

Description

The UCD1C220MCL6GS is a radial, can - SMD type aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 22 µF
  • Voltage - Rated: 16 V
  • Tolerance: ±20%
  • Application: Automotive
  • Ripple Current @ Low Frequency: 45 mA @ 120 Hz
  • Ripple Current @ High Frequency: 90 mA @ 100 kHz
  • Size / Dimension: 4.00mm Dia
  • Height - Seated (Max): 6.10mm
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Mounting Type: Surface Mount
  • Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
  • REACH: Unaffected
  • ECCN: EAR99
  • Impedance: 1.35 Ohms
  • Polarization: Polarized
