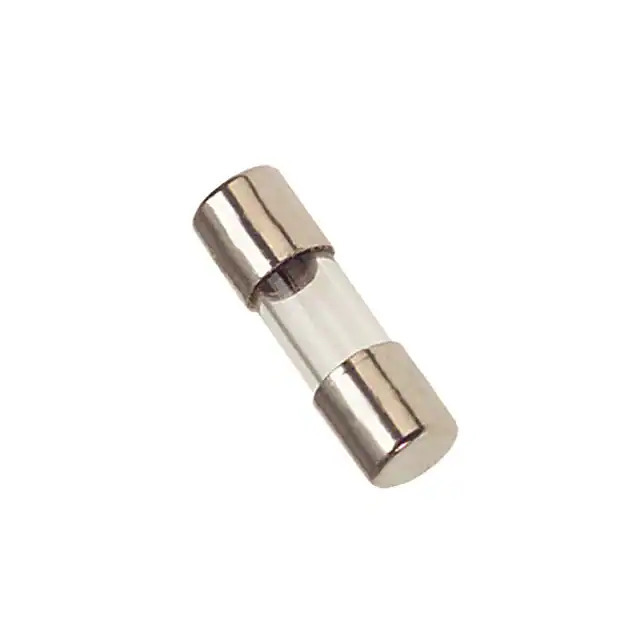

022501.5MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

022501.5MXP

Part No 022501.5MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 1.5A 250VAC 125VDC / 1.5 A 250 V AC 125 V DC Fuse Cartridge, Glass Requires Holder 2AG, 5mm x 15mm
Datasheet
022501.5MXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 225
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 1.5 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2AG, 5mm x 15mm
Breaking Capacity @ Rated Voltage 35A AC, 10kA DC
Melting I²t 0.8
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
DC Cold Resistance 0.0712 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361438-022501.5MXP
Ultra Librarian 3D Model Ultra Librarian 022501.5MXP CAD Model

Description

The 225 series from Littelfuse Inc. is a cartridge glass fuse designed for circuit protection.

  • Current Rating: 1.5A
  • Voltage Rating: 250V AC and 125V DC
  • Operating Temperature: -55°C to 125°C
  • Response Time: Fast Blow
  • Breaking Capacity (AC): 35A AC @ Rated Voltage
  • Breaking Capacity (DC): 10kA DC @ Rated Voltage
  • Approvals: CE, CSA, PSE, and UL
  • Size: 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
  • Mounting: Holder Required
  • Product Status: Active
