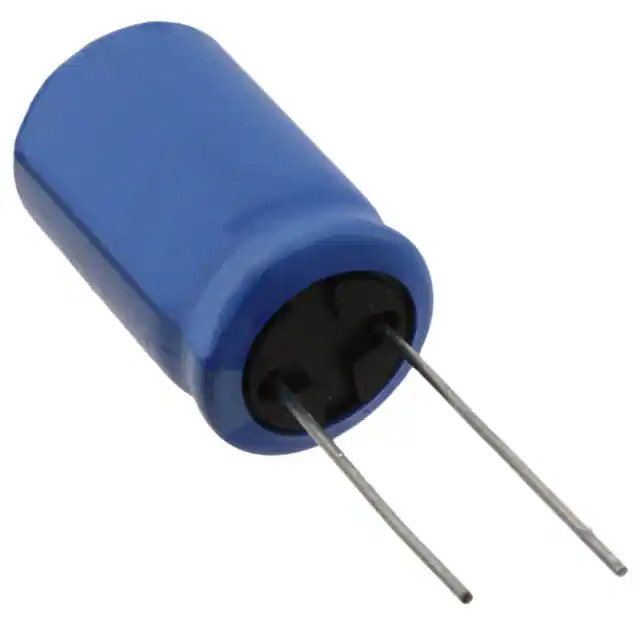

Same model may have multiple batches, images only for reference.

UBT1E222MHD

Name: UBT1E222MHD
Brand: Nichicon
SKU: 1358097
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UBT1E222MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 25V RADIAL / 2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 125°C
Datasheet	UBT1E222MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UBT
Package	Bulk
Product Status	Last Time Buy
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 125°C
Temperature Range - Operating	-40°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	1.816 A @ 120 Hz
Ripple Current @ High Frequency	2.71 A @ 100 kHz
Impedance	20 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358097-UBT1E222MHD
Ultra Librarian 3D Model	Ultra Librarian UBT1E222MHD CAD Model

Description

The UBT1E222MHD is an aluminum electrolytic capacitor from Nichicon's UBT series.

Manufacturer: Nichicon
Series: UBT
Capacitance: 2200 μF
Voltage: 25 V
Application: Automotive
Temperature Range: -40°C to 125°C
Lifetime: 10000 hours @ 125°C
Ripple Current (Low Frequency): 1.816 A @ 120 Hz
Ripple Current (High Frequency): 2.71 A @ 100 kHz
Mounting Type: Through-Hole
Package: Radial, Can
Lead Spacing: 7.50mm
Product Status: Last Time Buy
REACH: Unaffected
ECCN: EAR99
Polarization: Polar
Impedance: 20 mOhms
