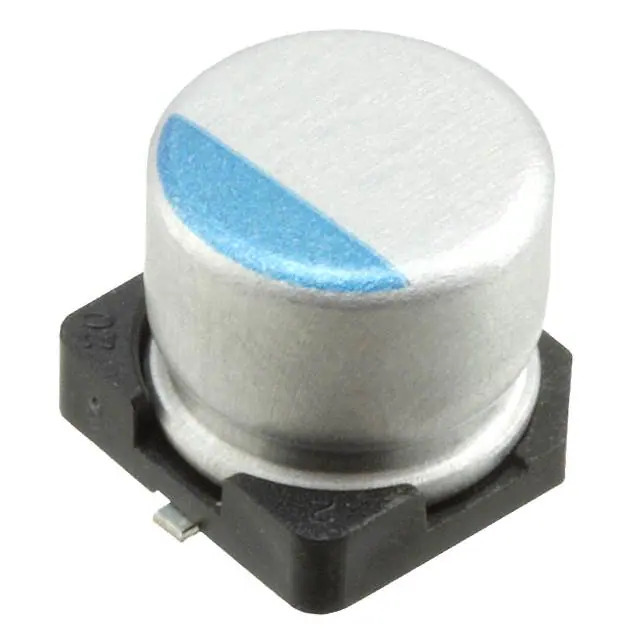

PCV1V220MCL2GS Nichicon
Same model may have multiple batches, images only for reference.

PCV1V220MCL2GS

Part No PCV1V220MCL2GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 35V SMD / 22 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 50mOhm 3000 Hrs @ 105°C
Datasheet
PCV1V220MCL2GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Nichicon
Series PCV
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 50mOhm
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 1.3 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359484-PCV1V220MCL2GS
Ultra Librarian 3D Model Ultra Librarian PCV1V220MCL2GS CAD Model

Description

The Nichicon PCV1V220MCL2GS is a polymer capacitor from Nichicon's PCV series.

  • Capacitance: 22 µF
  • Voltage Rating: 35 V
  • Temperature Range: -55°C to 105°C
  • Tolerance: ±20%
  • Equivalent Series Resistance (ESR): 50mOhm
  • Lifetime: 3000 hours @ 105°C
  • Mounting Type: Surface Mount
  • Package: Radial, Can - SMD
  • Diameter: 6.30mm
  • Maximum Seated Height: 6.00mm
  • Ripple Current (High Frequency): 1.3 A @ 100 kHz
  • REACH: Affected
  • ECCN: EAR99
