Same model may have multiple batches, images only for reference.

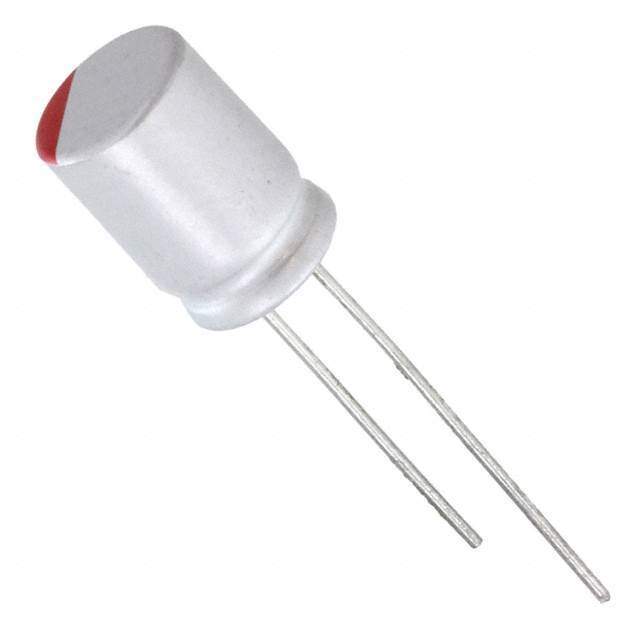

RNS1C101MDN1KX Real Image
Same model may have multiple batches, images only for reference.

RNS1C101MDN1KX

Part No RNS1C101MDN1KX
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 100UF 20% 16V T/H / 100 µF 16 V Aluminum - Polymer Capacitors Radial, Can 21mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Nichicon
Series FPCAP, RNS
Package Cut Tape (CT),Tape & Box (TB)
Type Polymer
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 21mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 390 mA @ 120 Hz
Ripple Current @ High Frequency 3.9 A @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-14228-1,493-14228-3,RNS1C101MDN1KX-ND
Standard Package 1,000
Win Source Part Number 1157303-RNS1C101MDN1KX
Ultra Librarian 3D Model Ultra Librarian RNS1C101MDN1KX CAD Model

Description

The Nichicon RNS series of capacitors are aluminum polymer capacitors that are suitable for general-purpose applications.

  • Capacitance: 100 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • ESR: 21mOhm
  • Ripple Current: 390 mA @ 120 Hz and 3.9 A @ 100 kHz
  • Height: 0.512" (13.00mm) when seated
  • Diameter: 0.315" (8.00mm)
  • Package: Radial, can
  • Mounting Type: Through-hole
  • Temperature Range: -55°C ~ 105°C
  • Lifetime: 2000 Hrs @ 105°C
  • Packaging: Cut tape (CT) and tape & box (TB) packages
  • Surface Mount Land Size: -
  • Suitability: An ideal choice for applications that require high capacitance, low ESR, and low impedance.
