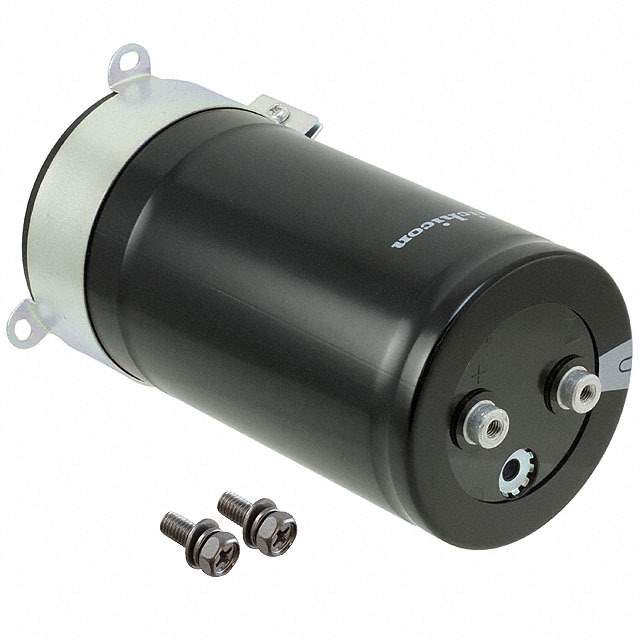

Same model may have multiple batches, images only for reference.

LNX2L272MSEH

Name: LNX2L272MSEH
Brand: Nichicon
SKU: 778120
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LNX2L272MSEH
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2700UF 20% 550V SCREW / Cap Aluminum Lytic 2700uF 550V 20% (76.2 X 150mm) Screw Terminal 9400mA 5000h 85°C Bulk
Datasheet	LNX2L272MSEH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	LNX
Packaging	Bulk
Capacitance	2700μF
Tolerance	±20%
Voltage Rating DC	550V
Lifetime @ Temp.	5000 Hrs @ 85°C
Operating Temperature Range	-25°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	9.4A @ 120Hz
Lead Spacing	1.252" (31.80mm)
Dimension	3.000" Dia (76.20mm)
Height - Seated (Maximum)	6.024" (153.00mm)
Mounting	Chassis Mount
Package	Radial, Can - Screw Terminals
Win Source Part Number	778120-LNX2L272MSEH
Popularity	Medium
Supply and Demand Status	Balance
Family Name	NX
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian LNX2L272MSEH CAD Model

Description

The Nichicon LNX series capacitor is a polarized aluminum electrolytic capacitor with a capacitance of 2700μF and a voltage rating of 550V DC.

Capacitance: 2700μF
Voltage Rating: 550V DC
Tolerance: ±20%
ESR: -
Ripple Current: 9.4A @ 120Hz (Low Frequency)
Lead Spacing: 1.252" (31.80mm)
Dimension: 3.000" Dia (76.20mm)
Mounting: Chassis Mount
Terminals: Radial, Can - Screw
Series: NX
Lifetime: 5000 Hrs @ 85°C
EOL Date: 2029
