H24B-AD-LB TE Connectivity
Same model may have multiple batches, images only for reference.

H24B-AD-LB

Part No H24B-AD-LB
Manufacturer TE Connectivity
Catalog Heavy Duty Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors - Housings, Hoods, Bases
Mfr TE Connectivity AMP Connectors
Series HB
Package Bulk
Connector Type Base - Panel Mount
Style Bottom Entry
Size 24B
Lock Location Locking Clip (1) on Base Bottom
Dimension 5.598" L x 1.799" W x 1.173" H (142.20mm x 45.70mm x 29.80mm)
Housing Color Gray
Features Cover
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum Alloy, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number H24B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1315620-H24B-AD-LB
Ultra Librarian 3D Model Ultra Librarian H24B-AD-LB CAD Model

Description

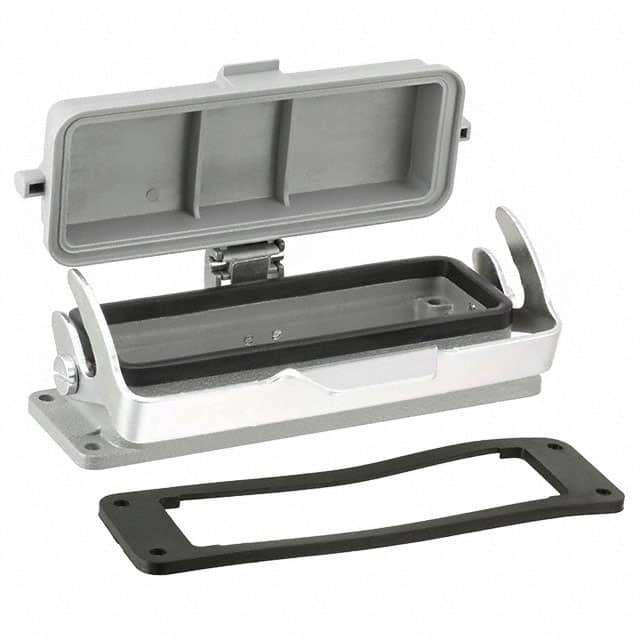

The TE Connectivity AMP Connectors H24B-AD-LB is a heavy-duty connector base designed for use in panel mount applications.

  • Ingress Protection: IP65
  • Housing Material: Aluminum Alloy Die-Cast
  • Housing Color: Gray
  • Series: HB
  • Cover Feature: Cover
  • Size: 24B
  • Entry Style: Bottom Entry
  • Operating Temperature: -40°C to 125°C
  • Packaging: Bulk
  • Housing Finish: Powder-Coated
