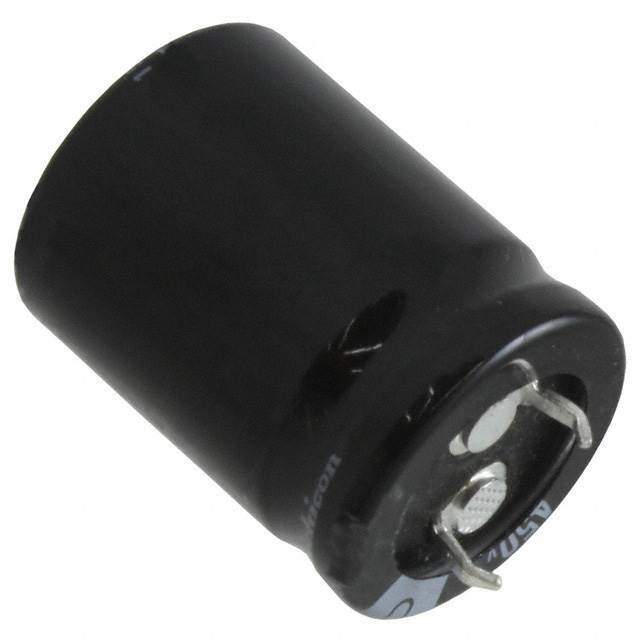

LLS2A102MELZ

Part No LLS2A102MELZ
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 100V SNAP / 1000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LLS
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.02 A @ 120 Hz
Ripple Current @ High Frequency 2.323 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 1.181" (30.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Standard Package 250
Win Source Part Number 1147725-LLS2A102MELZ
Ultra Librarian 3D Model Ultra Librarian LLS2A102MELZ CAD Model

Description

LLS2A102MELZ from Nichicon is an aluminum capacitor intended for designs that need dependable bulk capacitance, power smoothing, or general filtering in electronic circuits. Components in this category are commonly selected for power supplies, industrial control boards, consumer electronics, and embedded systems where stable energy storage and ripple handling are important to overall circuit behavior. For engineers and sourcing teams, this part is best positioned as a practical option within established capacitor supply chains, especially when matching approved manufacturers or maintaining BOM continuity. The current lifecycle status for LLS2A102MELZ is information not available, so design teams should confirm ongoing production status directly with Nichicon or authorized distributors before committing to new programs. RoHS compliance information is also not available from the provided input, and compliance should be verified through the latest datasheet, manufacturer declaration, or distributor documentation before use in regulated applications.
