Same model may have multiple batches, images only for reference.

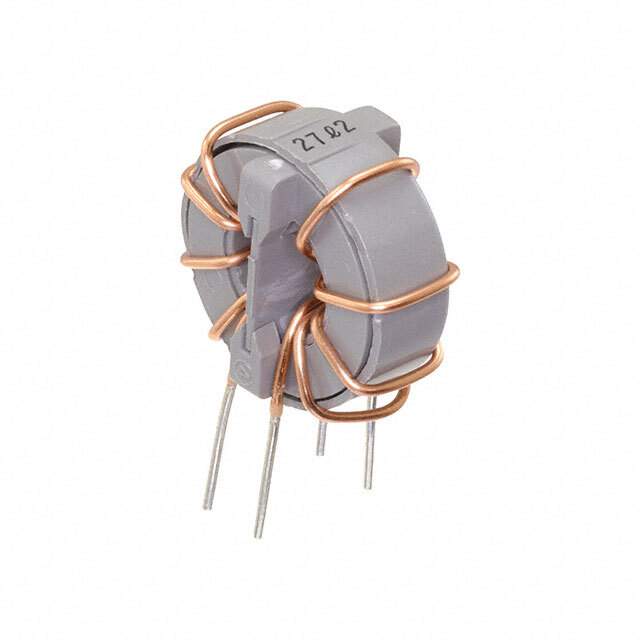

SC-05-D0065 Real Image
Same model may have multiple batches, images only for reference.

SC-05-D0065

Part No SC-05-D0065
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6.5 µH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 10mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.965" L x 0.531" W (24.50mm x 13.50mm)
Height (Max) 0.965" (24.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-05
Other Names 399-SC-05-D0065,UALSC05D006500
Standard Package 360
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276946-SC-05-D0065
Ultra Librarian 3D Model Ultra Librarian SC-05-D0065 CAD Model

Description

The KEMET SC-05-D0065 is a common mode choke filter that is ideal for various applications.

  • Voltage Rating: 250V AC/DC
  • Current Rating (Max): 5A
  • Filter Type: Power line
  • Height (Max): 0.965 inches (24.50mm)
  • Package: Vertical, no base, 4 PC pin
  • Number of Lines: 2
  • Inductance @ Frequency: 6.5 μH @ 100 kHz
