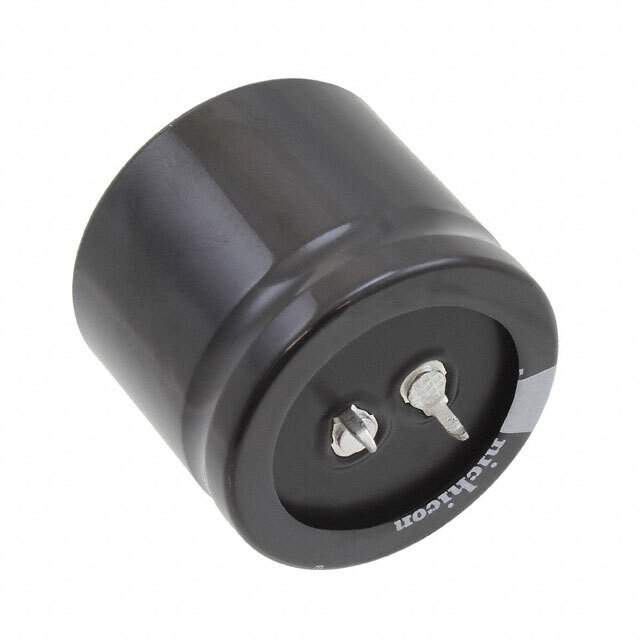

Same model may have multiple batches, images only for reference.

LGU2C152MELC

Name: LGU2C152MELC
Brand: Nichicon
SKU: 1012016
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LGU2C152MELC
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1500UF 20% 160V SNAP / 1500 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGU
Package	Bulk
Capacitance	1500 µF
Tolerance	±20%
Voltage - Rated	160 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.84 A @ 120 Hz
Ripple Current @ High Frequency	4.26 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.181" (30.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Other Names	493-2648
Standard Package	200
Win Source Part Number	1012016-LGU2C152MELC
Ultra Librarian 3D Model	Ultra Librarian LGU2C152MELC CAD Model

Description

The Nichicon LGU2C152MELC is a general-purpose aluminum electrolytic capacitor with a capacitance of 1500 µF and a voltage rating of 160V.

Capacitance: 1500 µF
Voltage Rating: 160V
Win Source Part Number: 1012016
Package: bulk
Standard Package: 200
Polarized: yes
Tolerance: ±20%
Height - Seated (Max): 1.181" (30.00mm)
Lead Spacing: 0.394" (10.00mm)
Ripple Current: 2.84 A @ 120 Hz and 4.26 A @ 50 kHz
Mounting Type: through-hole
Package/Case: radial, can-snap-in
Temperature Range: -40°C to 105°C
MSL: not applicable
REACH: unaffected
HTSUS Code: 8532.22.0040
Manufacturer: Nichicon
Other Names: 493-2648
