Same model may have multiple batches, images only for reference.

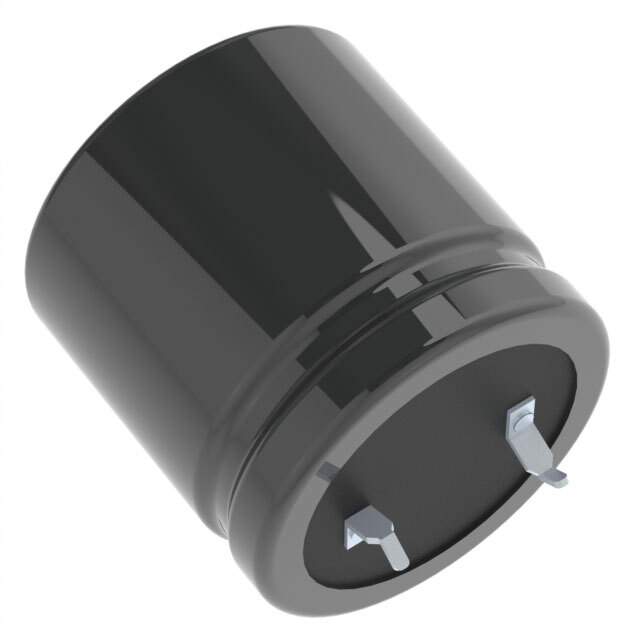

LGJ2G560MELY20 Real Image
Same model may have multiple batches, images only for reference.

LGJ2G560MELY20

Part No LGJ2G560MELY20
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 400V SNAP / 56 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGJ2G560MELY20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGJ
Package Bulk
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 550 mA @ 120 Hz
Ripple Current @ High Frequency 786.5 mA @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.787" Dia (20.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1348586-LGJ2G560MELY20
Ultra Librarian 3D Model Ultra Librarian LGJ2G560MELY20 CAD Model

Description

The LGJ2G560MELY20 is an aluminum electrolytic capacitor that is commonly used in electronic devices.

  • Manufacturer: Nichicon
  • Part Number: LGJ2G560MELY20
  • Component Type: Aluminum Electrolytic Capacitor
  • Application: Electronic Devices
  • Mounting Type: Through-Hole
  • Package: Radial, Can - Snap-In
  • Packaging: Bulk
  • Capacitance: 56 μF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • Lifetime: 3000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 550 mA @ 120 Hz
  • Ripple Current @ High Frequency: 786.5 mA @ 50 kHz
