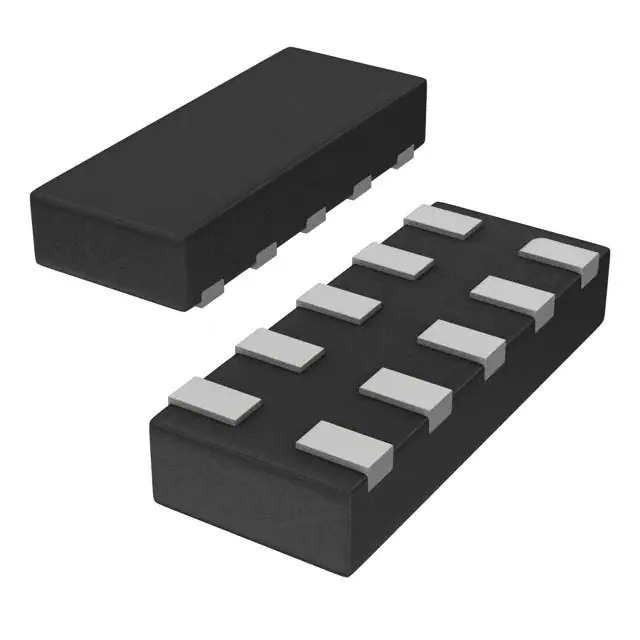

Same model may have multiple batches, images only for reference.

PUSB3FA1Z

Name: PUSB3FA1Z
Brand: Nexperia USA Inc.
SKU: 1362409
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PUSB3FA1Z
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 3VC DFN2510A-10 / 3V (Typ) Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10
Datasheet	PUSB3FA1Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Nexperia USA Inc.
Series	-
Package	Tape & Reel
Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Voltage - Reverse Standoff (Typ)	-
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	3V (Typ)
Current - Peak Pulse (10/1000µs)	7A (8/20µs)
Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.29pF @ 1MHz
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-XFDFN
Supplier Device Package	DFN2510A-10
Base Product Number	PUSB3
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362409-PUSB3FA1Z
Ultra Librarian 3D Model	Ultra Librarian PUSB3FA1Z CAD Model

Alternative Products

Description

The PUSB3FA1Z is a steering transient voltage suppressor diode from Nexperia USA Inc.

Application: General Purpose
Temperature Range: -40°C to 85°C
Voltage Clamping: 3V (typical) @ a peak pulse current of 7A (8/20μs)
Capacitance: 0.29pF @ a frequency of 1MHz
Package: 10-XFDFN
Mounting Type: Surface Mount
