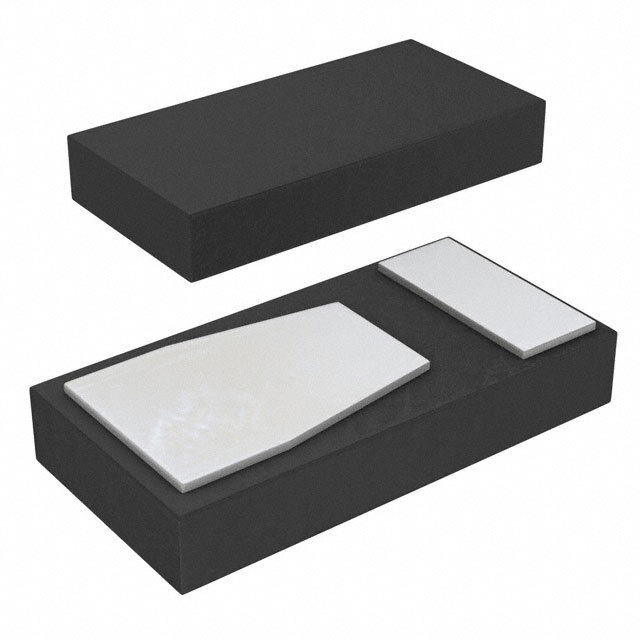

Same model may have multiple batches, images only for reference.
PTVS20VZ1USKYL
Same model may have multiple batches, images only for reference.

PTVS20VZ1USKYL

Part No PTVS20VZ1USKYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 20VWM 36.9VC DSN1608-2
Datasheet
PTVS20VZ1USKYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 19 Weeks
Features 36.9V Clamp 6A Ipp Tvs Diode Surface Mount DSN1608-2
Manufacturer Nexperia USA Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 0603 (1608 Metric)
Case / Package DSN1608-2
Family Name PTVS20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 934070032315, 1727-2749-6, 1727-2749-1, 568-13316-1, 1727-2749-2, 568-13316-2, 568-13316-6, 568-13316-2-ND, 568-13316-1-ND, 568-13316-6-ND
Quantity per package 10000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 931095-PTVS20VZ1USKYL
Ultra Librarian 3D Model Ultra Librarian PTVS20VZ1USKYL CAD Model

Description

The Nexperia PTVS20VZ1USKYL is a TVS diode designed to protect sensitive electronics from voltage transients induced by lightning and other transient voltage events.

  • Clamp: 36.9V
  • Ipp: 6A
  • Package: Surface mount DSN1608-2 package
  • Family: PTVS20 family
  • Operating Temperature Range: -40°C to 125°C
  • Quantity per Package: 10,000
