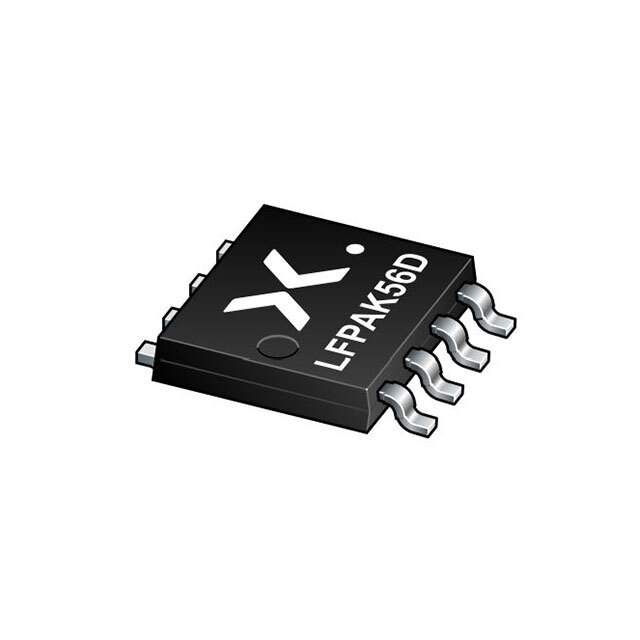

PSMN013-40VLDX Real Image1 PSMN013-40VLDX Real Image2
Same model may have multiple batches, images only for reference.
PSMN013-40VLDX Real Image1 PSMN013-40VLDX Real Image2
PSMN013-40VLDX Real Image1 PSMN013-40VLDX Real Image2
Same model may have multiple batches, images only for reference.

PSMN013-40VLDX

Part No PSMN013-40VLDX
Manufacturer Nexperia USA Inc.
Catalog FETs - Arrays
Description PSMN013-40VLD - DUAL N-CHANNEL 4 / Mosfet Array 40V 42A (Ta) 46W (Ta) Surface Mount LFPAK56D
Datasheet
PSMN013-40VLDX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors>FETs, MOSFETs>FET, MOSFET Arrays
Mfr Nexperia USA Inc.
Series -
Package Tape & Reel
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Half Bridge)
FET Feature -
Drain to Source Voltage (Vdss) 40V
Current - Continuous Drain (Id) @ 25°C 42A (Ta)
Rds On (Max) @ Id, Vgs 13.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 19.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 1160pF @ 25V
Power - Max 46W (Ta)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-1205, 8-LFPAK56
Supplier Device Package LFPAK56D
Base Product Number PSMN013
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 1,500 pcs
Win Source Part Number 1383213-PSMN013-40VLDX
Ultra Librarian 3D Model Ultra Librarian PSMN013-40VLDX CAD Model

Description

The 1383213-PSMN013-40VLDX is a MOSFET array from Nexperia USA Inc. It comes in a tape and reel package and has a drain to source voltage (Vdss) of 40V.

  • Package: Tape and Reel
  • Vdss (Drain to Source Voltage): 40V
  • Id (Continuous Drain Current): 42A @ 25°C
  • Rds On (On-Resistance): 13.6mOhm @ 10A, 10V
  • Vgs(th) (Gate Threshold Voltage): 2.2V @ 1mA
  • Power Dissipation: 46W @ Ambient Temperature
  • Mounting Type: Surface Mountable
  • Configuration: 2 N-Channel
  • Suitable for: High power applications
  • Operating Temperature: -55°C to 175°C
