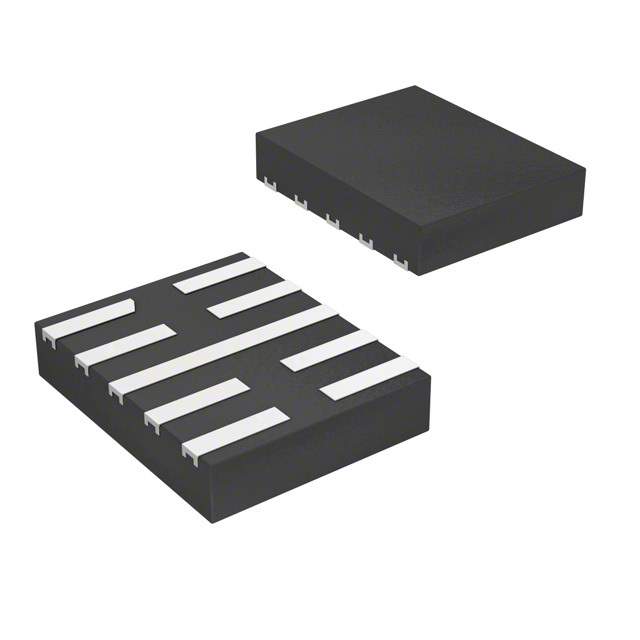

PCMF2DFN1XL Real Image
Same model may have multiple batches, images only for reference.

PCMF2DFN1XL

Part No PCMF2DFN1XL
Manufacturer Nexperia USA Inc.
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4LN SMD ESD
Datasheet
PCMF2DFN1XL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 5 Ohm (Typ)
Temperature Range - Operating -40°C to 85°C
Features ESD
Mounting SMD (SMT)
Height (Max) 0.020" (0.50mm)
Dimension 9-XFDFN
Win Source Part Number 1087077-PCMF2DFN1XL
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PCMF2DFN1XL CAD Model

Description

The Nexperia USA Inc. BAL99,215 is a standard diode component with a maximum reverse voltage of 70V and an average rectified current of 215mA (DC).

  • Maximum Reverse Voltage: 70V
  • Average Rectified Current: 215mA (DC)
  • Forward Voltage: 1.25V @ 150mA
  • Reverse Recovery Time: 4ns
  • Temperature Range: up to 150°C
  • Current Reverse Leakage: 1μA @ 70V
  • Package: TO-236AB (SOT23)
  • Mounting: SMD (SMT) technology
