Same model may have multiple batches, images only for reference.

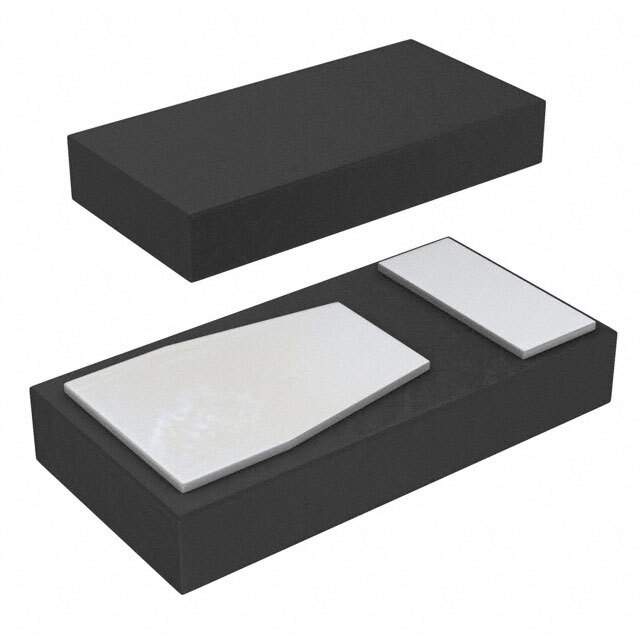

PTVS18VZ1USKYL Real Image
Same model may have multiple batches, images only for reference.

PTVS18VZ1USKYL

Part No PTVS18VZ1USKYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 18VWM 32.8VC DSN1608-2 / 32.8V Clamp 6.4A Ipp Tvs Diode Surface Mount DSN1608-2
Datasheet
PTVS18VZ1USKYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V (Max)
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Max) @ Ipp 32.8V
Current - Peak Pulse (10/1000µs) 6.4A
Power - Peak Pulse 210W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 290pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Supplier Device Package DSN1608-2
Base Product Number PTVS18
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 568-13313-2,934069213315,568-13313-1,1727-2746-6,568-13313-6,568-13313-2-ND,568-13313-1-ND,1727-2746-2,NEXNXPPTVS18VZ1USKYL,1727-2746-1,568-13313-6-ND,2156-PTVS18VZ1USKYL-NEX
Standard Package 10,000
Win Source Part Number 1334967-PTVS18VZ1USKYL
Ultra Librarian 3D Model Ultra Librarian PTVS18VZ1USKYL CAD Model

Description

The Nexperia PTVS18VZ1USKYL is a surface mount Zener diode that is designed for use in a variety of general purpose applications.

  • Maximum Power Dissipation: 210 W
  • Maximum Peak Pulse Current: 6.4 A
  • Reverse Standoff Voltage: 18 V
  • Breakdown Voltage: 20 V
  • Package: 0603
