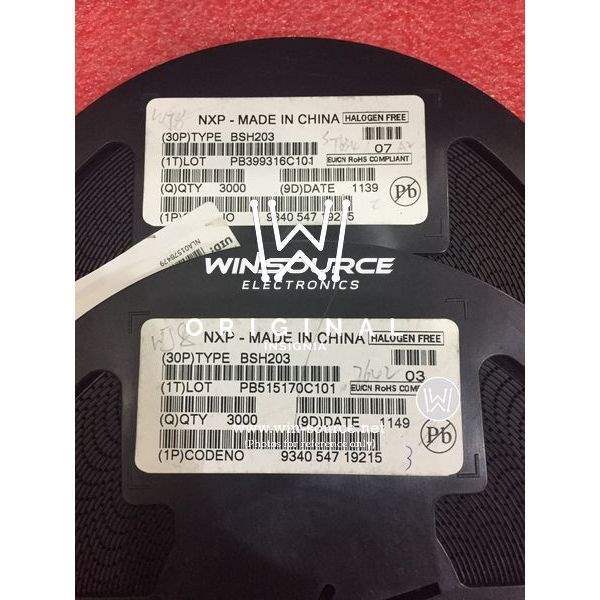

BSH203,215 Nexperia USA Inc. BSH203,215 real image BSH203,215 real image 2 BSH203,215 label picture
Same model may have multiple batches, images only for reference.
BSH203,215 Nexperia USA Inc. BSH203,215 real image BSH203,215 real image 2 BSH203,215 label picture
BSH203,215 Nexperia USA Inc. BSH203,215 real image BSH203,215 real image 2 BSH203,215 label picture
Same model may have multiple batches, images only for reference.

BSH203,215

Part No BSH203,215
Manufacturer Nexperia USA Inc.
Catalog TRANSISTORS
Description MOSFETs 20 V, P-channel Trench MOSFET
Datasheet
BSH203,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia
Technology Si
Mounting Style SMD/SMT
Package / Case SOT-23-3
Transistor Polarity P-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 30 V
Id - Continuous Drain Current 470 mA
Rds On - Drain-Source Resistance 900 mOhms
Vgs - Gate-Source Voltage - 8 V, + 8 V
Vgs th - Gate-Source Threshold Voltage 400 mV
Qg - Gate Charge 2.2 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 417 mW
Channel Mode Enhancement
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Brand Nexperia
Product Type MOSFETs
Standard Pack Qty 3000
Subcategory Transistors
Ultra Librarian 3D Model Ultra Librarian BSH203,215 CAD Model

Description

The Nexperia BSH203,215 is a P-channel MOSFET with a maximum drain-source breakdown voltage of 30V.

  • Continuous Drain Current: 470mA @ 25°C
  • Maximum Power Dissipation: 417mW
  • Application: Discrete Semiconductor Products
  • Mounting: Surface-Mount Technology
  • Drive Voltage (Max Rds On): 1.8V
  • Drive Voltage (Min Rds On): 4.5V
  • Gate-Source Threshold Voltage: 680mV @ 1mA
  • Maximum Input Capacitance: 110pF @ 24V
  • Maximum Gate-Source Voltage: ±8V
  • Maximum Rds On @ Id,Vgs: 900 mOhm @ 280mA and 4.5V
  • Package: TO-236AB (SOT23)
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Market Popularity: Popular
  • Supply and Demand: Sufficient
