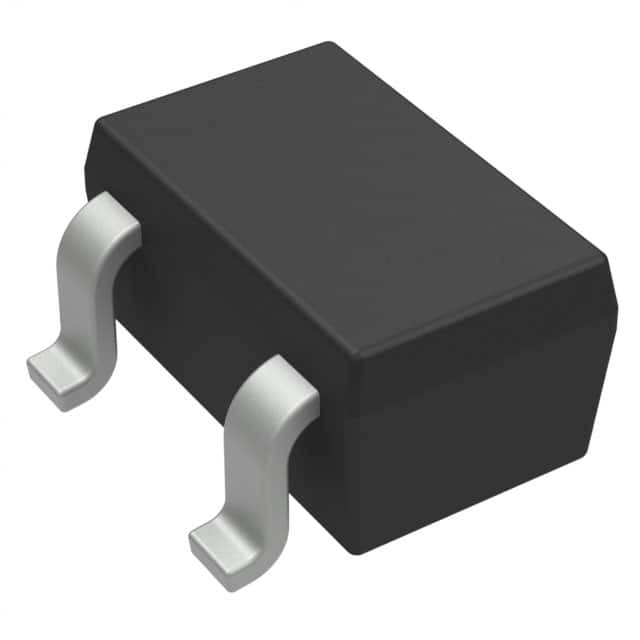

Same model may have multiple batches, images only for reference.
BAS16W,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAS16W,115

Part No BAS16W,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 175MA SOT323 / Diode Standard 100 V 175mA (DC) Surface Mount SOT-323
Datasheet
BAS16W,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101, BAS16
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 175mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 80 V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case SC-70, SOT-323
Supplier Device Package SOT-323
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number BAS16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 568-1597-6,2156-BAS16W,115-NEX,NEXNXPBAS16W,115,934022380115,NEXNEXBAS16W,115,568-1597-1-ND,1727-2888-1,1727-2888-2,568-1597-6-ND,BAS16W T/R,2156-BAS16W,115,568-1597-2-ND,1727-2888-6,568-1597-2,568-1597-1
Standard Package 3,000
Win Source Part Number 1048184-BAS16W,115
Ultra Librarian 3D Model Ultra Librarian BAS16W,115 CAD Model

Description

The Nexperia BAS16W,115 is a small signal diode with a standard type.

  • Voltage - DC Reverse (Vr) (Max): 100 V
  • Current - Average Rectified (Io): 175mA (DC)
  • Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
  • Reverse Recovery Time (trr): 4 ns
  • Package: SC-70, SOT-323
  • Mounting Type: SMD (SMT)
