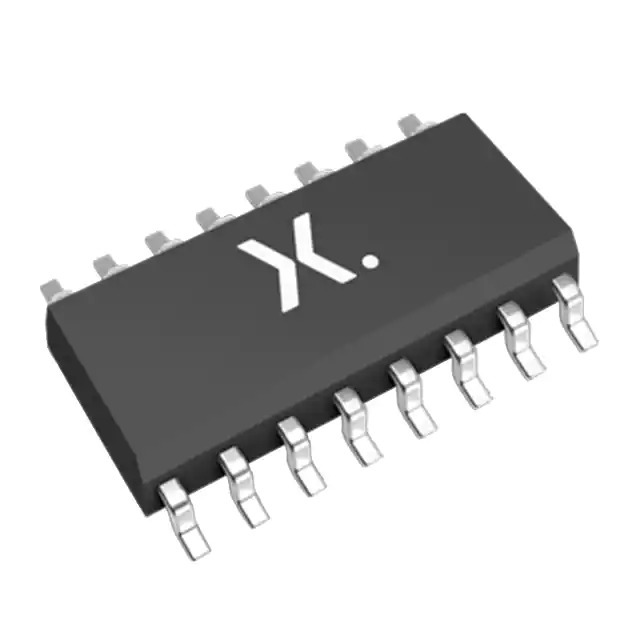

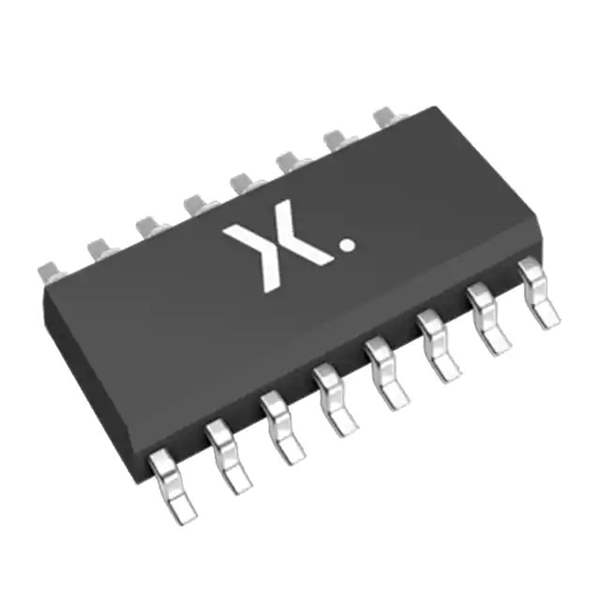

74HC109D,653 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74HC109D,653

Part No 74HC109D,653
Manufacturer Nexperia USA Inc.
Catalog Logic - Flip Flops
Description IC FF JK TYPE DUAL 1BIT 16SO
Datasheet
74HC109D,653 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Flip Flops
Mfr Nexperia USA Inc.
Series 74HC
Package Tape & Reel
Product Status Active
Function Set(Preset) and Reset
Type JK Type
Output Type Complementary
Number of Elements 2
Number of Bits per Element 1
Clock Frequency 81 MHz
Max Propagation Delay @ V, Max CL 30ns @ 6V, 50pF
Trigger Type Positive Edge
Current - Output High, Low 5.2mA, 5.2mA
Voltage - Supply 2V ~ 6V
Current - Quiescent (Iq) 4 µA
Input Capacitance 3.5 pF
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Supplier Device Package 16-SO
Package / Case 16-SOIC (0.154", 3.90mm Width)
Base Product Number 74HC109
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1370967-74HC109D,653
Ultra Librarian 3D Model Ultra Librarian 74HC109D,653 CAD Model

Description

The 74HC109D is a flip-flop integrated circuit (IC) from Nexperia USA Inc.

  • Series: 74HC
  • Package: 16-SOIC
  • Temperature Range: -40°C to 125°C
  • Voltage Supply Range: 2V to 6V
  • Type: JK type flip-flop with set (preset) and reset functions
  • Clock Frequency: 81MHz
  • Maximum Propagation Delay: 30ns
  • Elements: Two
  • Bits per Element: One
  • Triggering: Positive edge
  • Input Capacitance: 3.5pF
  • Output Type: Complementary
