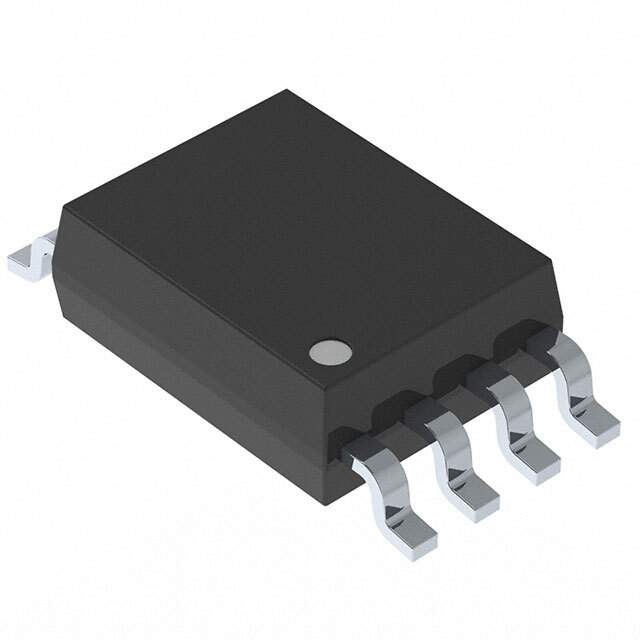

The NJM393CG TE2 is a dual low power voltage comparator manufactured by New Japan Radio (NJR). It's designed for general-purpose comparator applications, providing a cost-effective solution for comparing two voltages and generating a digital output signal based on the comparison. The low power consumption makes it particularly suitable for battery-powered and energy-sensitive applications. Its versatility allows it to be used in a wide array of electronic circuits.

Applications

• Threshold Detectors: Detecting when a voltage exceeds a predefined threshold.
• Zero Crossing Detectors: Identifying the points where a signal crosses zero volts.
• Oscillators: Generating periodic signals in various electronic circuits.
• Level Shifters: Converting voltage levels from one range to another.
• Window Comparators: Detecting when a voltage falls within a specific range.

Features

• Dual Comparator: Contains two independent comparators in a single package.
• Low Power Consumption: Minimizes power drain in battery-powered applications.
• Wide Supply Voltage Range: Operates with a wide range of supply voltages.
• Open Collector Output: Allows for flexible interface with various logic families.
• High Input Impedance: Minimizes loading of the input signal source.
• Small Package: Compact package size for space-constrained applications.

Benefits

• Cost-Effective Solution: Provides a low-cost solution for voltage comparison.
• Extended Battery Life: Low power consumption extends battery life in portable devices.
• Versatile Application: Can be used in a wide range of comparator applications.
• Simplified Circuit Design: Easy to integrate into various electronic circuits.
• Reliable Performance: Designed for stable and reliable operation in various environments.

Additional Details

The NJM393CG TE2 features an open-collector output, requiring an external pull-up resistor. The response time of the comparator is an important parameter to consider for high-speed applications. The input offset voltage and input bias current are also important specifications to consider for accurate voltage comparison. Consult the official New Japan Radio (NJR) datasheet for precise electrical characteristics, timing specifications, and recommended operating conditions to ensure optimal performance and reliability. The datasheet will also provide information on the specific package dimensions, soldering recommendations, and application examples. The 'TE2' suffix likely indicates a specific tape and reel packaging option.
