Analog Devices Inc. LTC6803HG-4#3ZZPBF: High Voltage Battery Monitor

The LTC6803HG-4#3ZZPBF is a sophisticated battery monitoring IC from Analog Devices Inc., designed to optimize the performance and safety of battery management systems. This high-voltage integrated circuit is specifically engineered to monitor up to 12 series-connected battery cells for state-of-charge (SOC) and state-of-health (SOH) assessment, which is critical for high-reliability applications such as electric vehicles (EVs), hybrid electric vehicles (HEVs), and large-scale energy storage systems.

With an impressive operating voltage range, the LTC6803HG-4#3ZZPBF can handle cell voltages from 0V up to 5V, making it suitable for a wide variety of battery chemistries including lithium-ion, lithium polymer, and lithium iron phosphate. Its high accuracy voltage measurement capability ensures precise monitoring, which is essential for balancing cell charge and protecting the battery pack from overvoltage, undervoltage, and other hazardous conditions.

The device features a robust architecture that includes a 5V regulator, a precision voltage reference, an oscillator, and a 12-bit ADC for high-resolution cell measurement. It also provides a multiplexed precision measurement system for all cell voltages, with a total measurement error of less than 0.25%. This enables the LTC6803HG-4#3ZZPBF to deliver reliable data for battery management systems to make informed decisions on charging and discharging operations.

For communication, the LTC6803HG-4#3ZZPBF utilizes a high-speed ISO-SPI interface, which allows safe and reliable data transfer even in high-noise environments. Furthermore, the device can be daisy-chained with multiple LTC6803 ICs to monitor more cells in larger battery packs without compromising signal integrity.

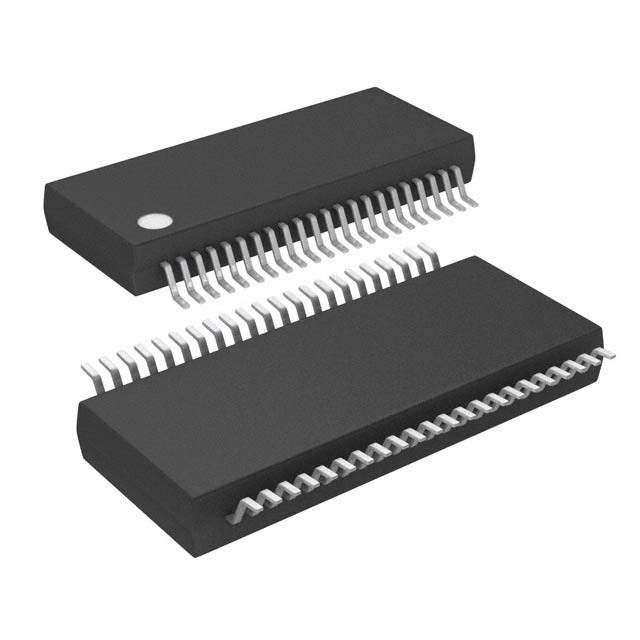

The LTC6803HG-4#3ZZPBF is housed in a compact, thermally enhanced 44-lead plastic SSOP package, which ensures efficient heat dissipation and a small footprint on the PCB. This, combined with its wide operating temperature range of -40°C to 125°C, makes it a versatile choice for various demanding applications where space and thermal performance are critical.

In summary, the LTC6803HG-4#3ZZPBF from Analog Devices Inc. is a high-performance, reliable solution for advanced battery monitoring, offering precision, scalability, and robust communication, all designed to enhance the safety and efficiency of modern battery systems.
