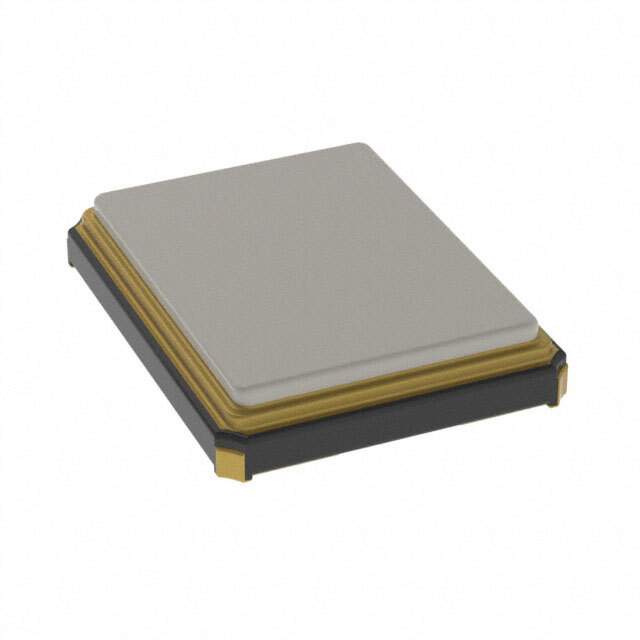

NX3225SA-20.000000MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

NX3225SA-20.000000MHZ-B2

Part No NX3225SA-20.000000MHZ-B2
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 20.0000MHZ 7.2PF SMD / 20 MHz ±10ppm Crystal 7.2pF 80 Ohms 4-SMD, No Lead
Datasheet
NX3225SA-20.000000MHZ-B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX3225SA
Package Tape & Reel
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±15ppm
Frequency Tolerance ±10ppm
Load Capacitance 7.2pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names LN-G102-1363,EXS00A-CS00529,50157411,644-1098-6,NX3225SA20000000MHZB2,644-1098-2,644-1098-1
Standard Package 3,000
Win Source Part Number 1157702-NX3225SA-20.000000MHZ-B2
Ultra Librarian 3D Model Ultra Librarian NX3225SA-20.000000MHZ-B2 CAD Model

Description

This is a crystal with a part number of 1157702-NX3225SA-20.000000MHZ-B2. It is manufactured by NDK America, Inc. and is part of their NX3225SA series.

  • Frequency: 20 MHz
  • Packaging: Tape and Reel
  • Standard Package: 3,000
  • Height-Seated (Max): 0.028" (0.70mm)
  • Mounting Type: SMD (SMT)
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Frequency Stability: ±15ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 7.2pF
  • Operating Mode: Fundamental
  • Package/Case: 4-SMD, no lead
  • Temperature Range: -30°C ~ 85°C
  • ECCN: EAR99
  • HTSUS: 8541.60.0050
