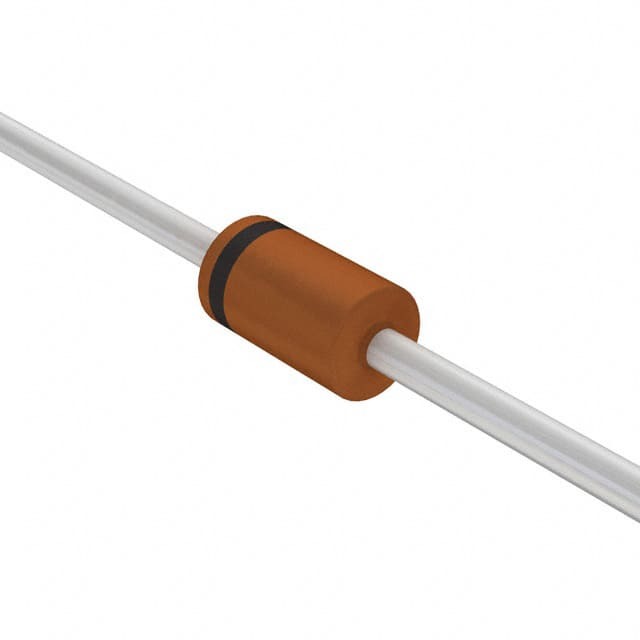

BAT85,113 NXP
Same model may have multiple batches, images only for reference.

BAT85,113

Part No BAT85,113
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA DO34
Datasheet
BAT85,113 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 800 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AG, DO-34, Axial
Supplier Device Package DO-34
Operating Temperature - Junction 125°C (Max)
Base Product Number BAT85
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1142927-BAT85,113
Ultra Librarian 3D Model Ultra Librarian BAT85,113 CAD Model

Description

The BAT85,113 is a Schottky diode designed for rectification applications.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 200mA
  • Forward Voltage: 800mV @ 100mA
  • Reverse Recovery Time: 4ns
  • Small Signal Speed: Suitable for applications with currents below 200mA
  • Operating Temperature: Up to 125°C
  • Mounting: Through-hole
  • Manufacturer: Nexperia USA Inc.
  • Quality: High quality and ensures reliable performance.
