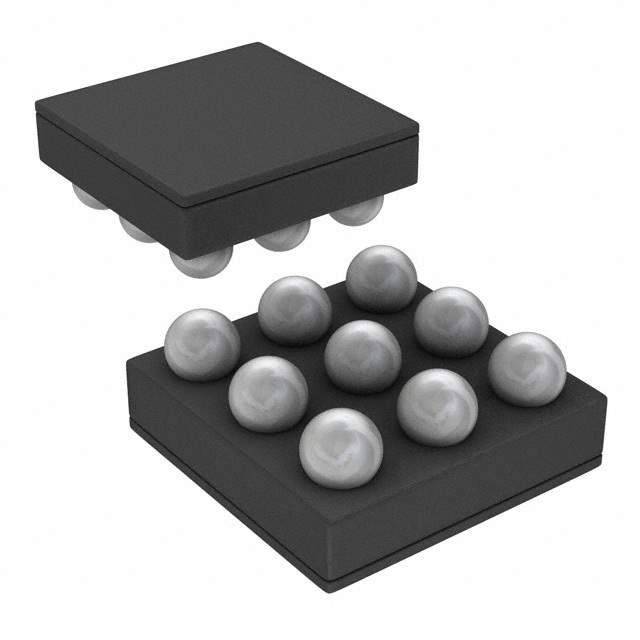

The LM4899ITLX is a Boomer® series audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication devices. Manufactured by National Semiconductor (now Texas Instruments), it's capable of delivering 1 Watt of continuous average power into an 8Ω load with less than 1% THD+N from a 5V power supply. The LM4899 features a shutdown mode that significantly reduces current consumption, making it ideal for battery-powered applications.

Applications:

• Mobile phones: Provides audio amplification for speaker output.
• Portable media players: Amplifies audio signals for headphones or built-in speakers.
• Laptop computers: Used for internal speaker amplification.
• PDAs and handheld devices: Integrates into handheld devices requiring audio output.
• Bluetooth speakers: Powers the speaker in portable Bluetooth speaker systems.

Features:

• Output Power: Delivers 1W into 8Ω with 1% THD+N from a 5V supply.
• Low THD+N: Provides high-quality audio reproduction with minimal distortion.
• Shutdown Mode: Minimizes power consumption during inactive periods, extending battery life.
• Integrated Volume Control: Simplifies system design with built-in volume adjustment capabilities.
• Short-Circuit Protection: Protects the amplifier from damage due to output shorts.
• Thermal Shutdown Protection: Prevents overheating and potential damage to the amplifier.
• Available in Small Packages: Suitable for compact portable devices.

Benefits:

• High Audio Quality: Ensures clear and distortion-free audio output for enhanced user experience.
• Extended Battery Life: Shutdown mode reduces power consumption, prolonging device operation on a single charge.
• Simplified Design: Integrated features like volume control minimize the need for external components.
• Reliable Operation: Short-circuit and thermal shutdown protections ensure robust and dependable performance.
• Compact Size: Small package allows for integration into space-constrained portable devices.

Additional Details:

The LM4899 operates with a supply voltage range of 2.0V to 5.5V. It utilizes a gain of 6dB, which can be adjusted with external resistors. It also includes an internal bias circuitry which reduces the external component count. The thermal shutdown protection activates at approximately 150°C. The LM4899ITLX typically comes in a WSON (wettable flank) package for improved board-level reliability. The amplifier’s high PSRR (Power Supply Rejection Ratio) further contributes to audio quality by minimizing noise from the power supply.
