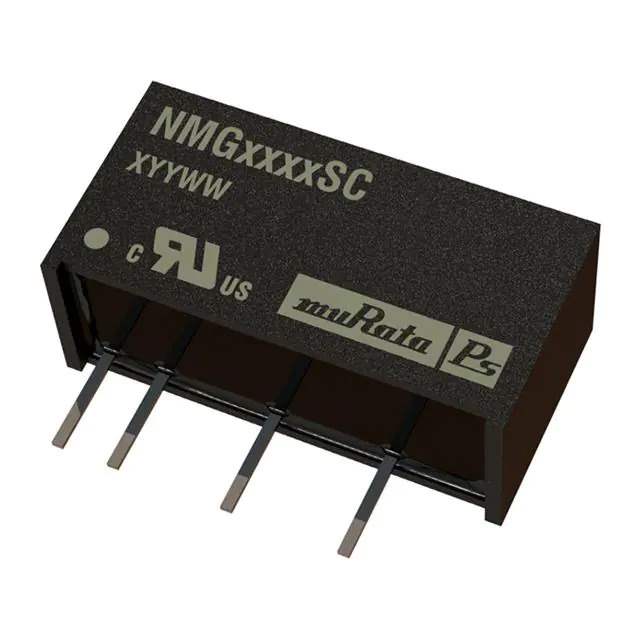

NMG1215SC Real Image
Same model may have multiple batches, images only for reference.

NMG1215SC

Part No NMG1215SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 2W / Isolated Module DC DC Converter 1 Output 15V 133mA 10.8V - 13.2V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMG (2W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 15V
Current - Output (Max) 133mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Base Product Number NMG12
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649147-NMG1215SC
Ultra Librarian 3D Model Ultra Librarian NMG1215SC CAD Model

Description

The 649147-NMG1215SC is a 2W power supply DC-DC converter module from Murata Power Solutions Inc.

  • Series: NMG
  • Module Type: 2W Isolated Module
  • Application: ITE (Commercial)
  • Package Size: 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
  • Mounting Type: Through-Hole
  • Outputs: 1
  • Maximum Output Current: 133mA
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltage: 15V
  • Efficiency: 88%
  • Voltage Isolation: 1 kV
  • Temperature Range: -40°C to 85°C
  • Package: 7-SIP module, 4 leads
