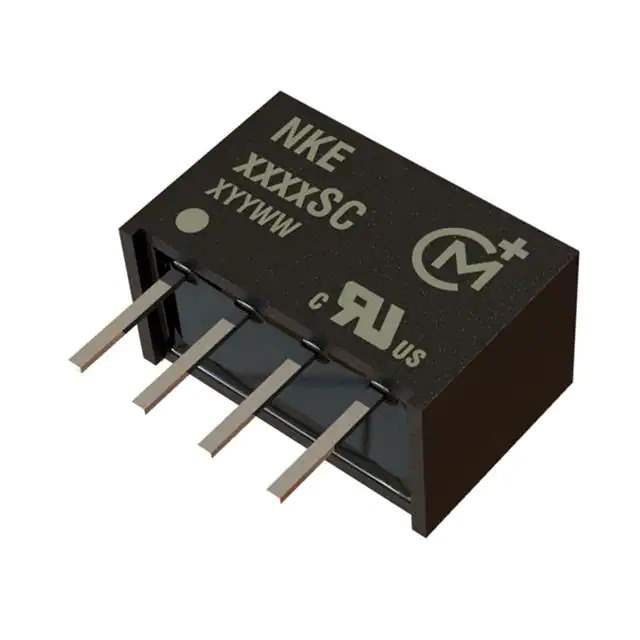

NKE0503SC Real Image
Same model may have multiple batches, images only for reference.

NKE0503SC

Part No NKE0503SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 1W / Isolated Module DC DC Converter 1 Output 3.3V 303mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NKE (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 3.3V
Current - Output (Max) 303mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm)
Base Product Number NKE05
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648817-NKE0503SC
Ultra Librarian 3D Model Ultra Librarian NKE0503SC CAD Model

Description

The NKE0503SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NKE
  • Application: Power supplies in board mount applications
  • Size: 0.45" L x 0.24" W x 0.29" H
  • Voltage Isolation: 3 kV
  • Output Current: 303mA
  • Output Voltage: 3.3V
  • Input Voltage: 4.5V to 5.5V
  • Efficiency: 74%
  • Operating Temperature: -40°C to 85°C
  • Mounting: Through hole
  • Package: 4-SIP module
  • Application: ITE (Commercial)
  • Standard Package: 40 pcs
