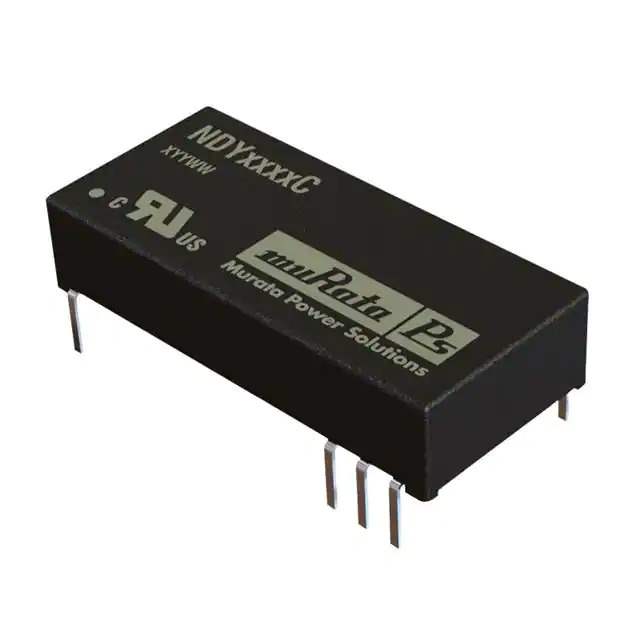

NDY0505C Real Image
Same model may have multiple batches, images only for reference.

NDY0505C

Part No NDY0505C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NDY (3W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 66%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Size / Dimension 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm)
Base Product Number NDY05
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648223-NDY0505C
Ultra Librarian 3D Model Ultra Librarian NDY0505C CAD Model

Description

The NDY0505C is a 3W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NDY
  • Application: Power supplies in board mount applications
  • Package: Tube
  • Dimensions: 1.27" L x 0.58" W x 0.27" H
  • Voltage Isolation: 1 kV
  • Outputs: One
  • Maximum Output Current: 600mA
  • Input Voltage Range: 4.5V to 9V
  • Output Voltage: 5V
  • Efficiency: 66%
  • Operating Temperature: -40°C to 85°C
  • Application Suitability: ITE (Commercial)
