Same model may have multiple batches, images only for reference.

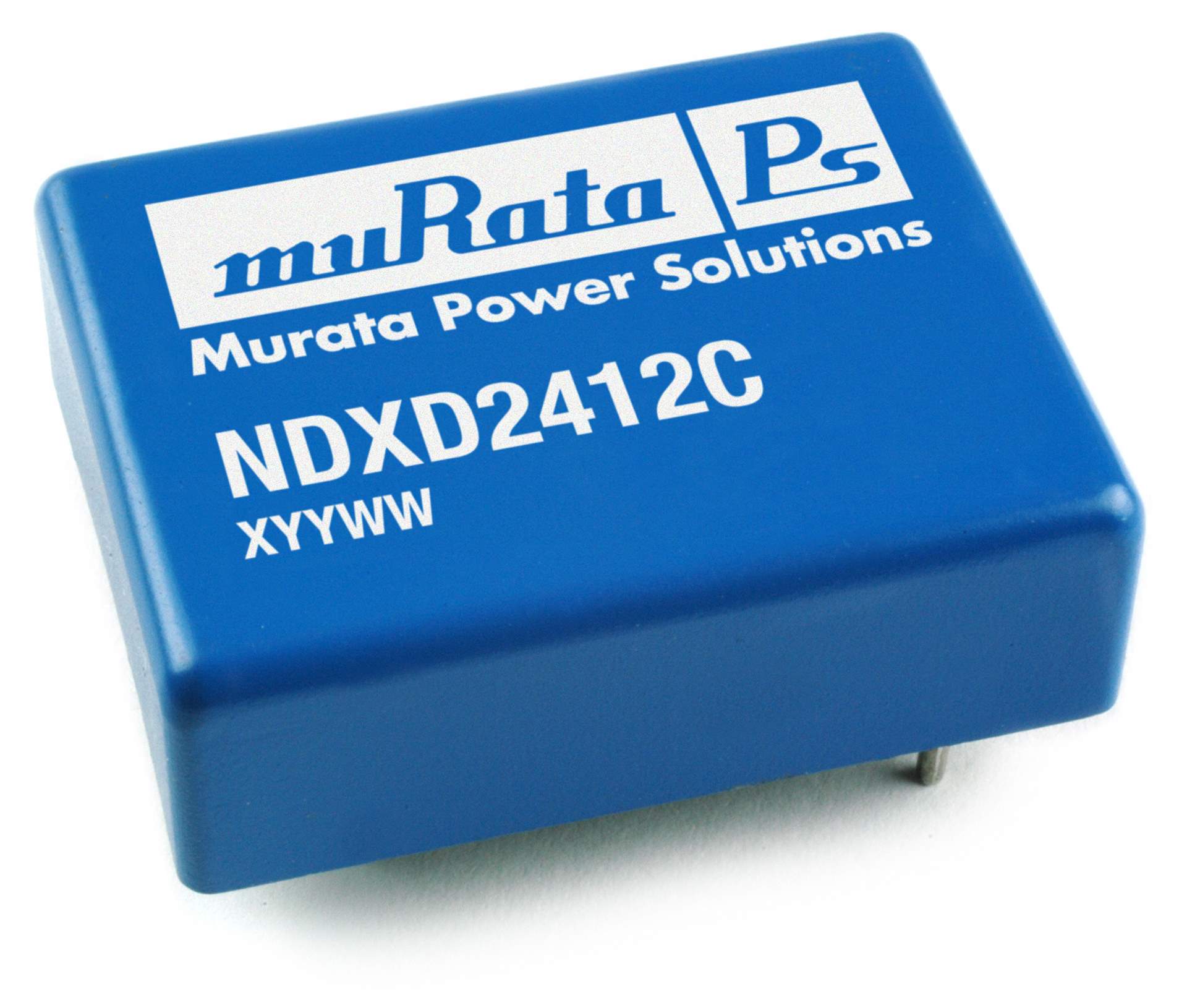

NDXD1212EC Real Image
Same model may have multiple batches, images only for reference.

NDXD1212EC

Part No NDXD1212EC
Manufacturer Murata Power Solutions Inc.
Catalog HOT - SALES and EOL Components
Description Isolated 7.5W Wide Input Single & Dual Output DC/DC Converters | DC DC CONVERTER +/-12V 7W
Datasheet
NDXD1212EC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Minimum) 9V
Voltage - Input (Maximum) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Maximum) 312mA, 312mA
Power (W) 7W
Voltage - Isolation 1kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Style Through Hole
Manufacturer Package 6-DIP Module
Parts Dimension 1.26" L x 0.98" W x 0.39" H (32.0mm x 24.9mm x 9.9mm)
Manufacturer Pack Quantity 15
MSL Level 1 (Unlimited)
Win Source Part Number 041908-NDXD1212EC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NDXD1212EC CAD Model

Description

The Murata Power Solutions Inc. Isolated Module 041908-NDXD1212EC is a through hole mounting style power supply with 1kV voltage isolation and 12V and -12V outputs.

  • Mounting Style: Through hole
  • Voltage Isolation: 1kV
  • Outputs: 12V and -12V
  • Efficiency: 78%
  • Maximum Output Current: 312mA
  • Applications: ITE (Commercial)
  • Package: 6-DIP Module
  • Operating Temperature: -40°C to 85°C
  • Package Quantity: 15
  • MSL Level: 1 (Unlimited)
  • Power: 7W
  • Voltage Input: 9V to 18V
  • Dimensions: 1.26" L x 0.98" W x 0.39" H (32.0mm x 24.9mm x 9.9mm)
