Same model may have multiple batches, images only for reference.

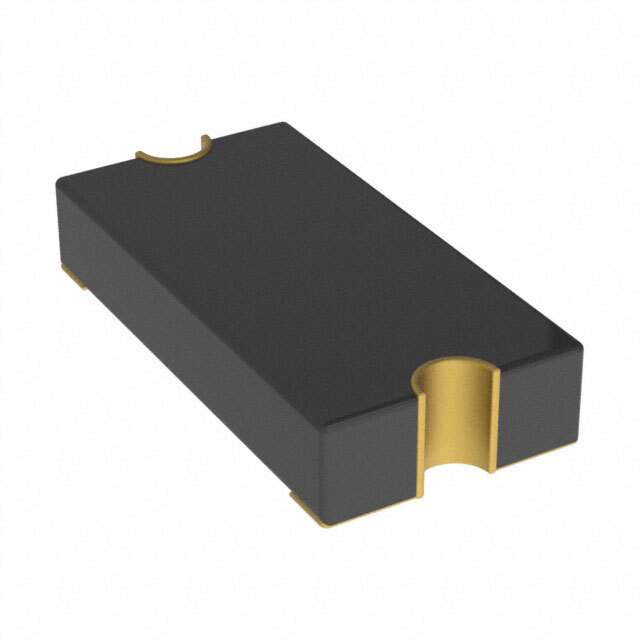

MF-NSMF020X-2 Real Image
Same model may have multiple batches, images only for reference.

MF-NSMF020X-2

Part No MF-NSMF020X-2
Manufacturer Bourns Inc.
Catalog HOT - SALES and EOL Components
Description PTC RESET FUSE 30V 200MA 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel
Type Polymeric
Voltage - Max 30V
Current - Max 60A
Current - Hold (Ih) (Maximum) 200mA
Current - Trip (It) 400mA
Time to Trip 600ms
Resistance - Initial (Ri) (Minimum) 600 mOhms
Resistance - Post Trip (R1) (Maximum) 3.3 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Style SMD
Manufacturer Package 1206 , Concave
Parts Dimension 3.20mm x 1.60mm
Thickness (Maximum) 0.033" (0.85mm)
Approvals cURus, TUV
Family Part Number MF-NSMF
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 095727-MF-NSMF020X-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-NSMF020X-2 CAD Model

Description

The Bourns Inc. 095727-MF-NSMF020X-2 is a polymeric type circuit protection component that is approved by cURus and TUV.

  • Voltage Rating: 30V
  • Maximum Current: 60A
  • Mounting Type: surface-mountable
  • Thickness: 0.033" (0.85mm)
  • Rated AEC-Q200: Yes
  • Operating Temperature Range: -40°C to 85°C
  • Current Hold: 200mA
  • Current Trip: 400mA
  • Time to Trip: 600ms
  • Commonly Used: in various electronic devices
  • Popularity: high
