Same model may have multiple batches, images only for reference.

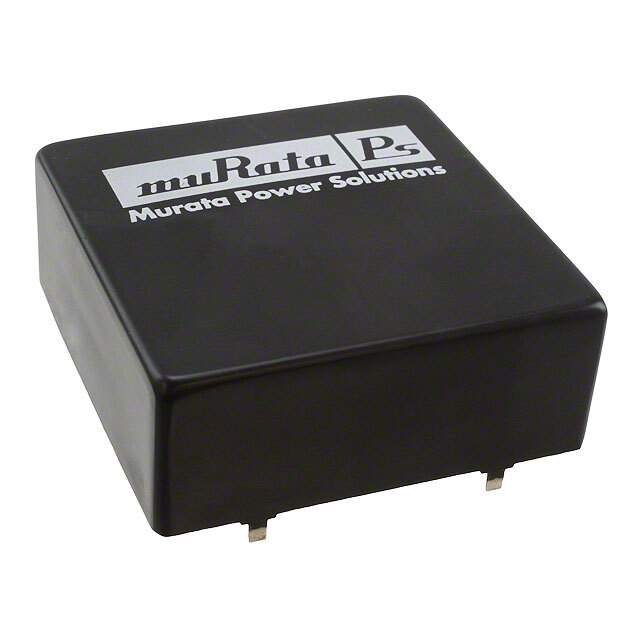

RUW15SL24HC Real Image
Same model may have multiple batches, images only for reference.

RUW15SL24HC

Part No RUW15SL24HC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 15W / Isolated Module DC DC Converter 1 Output 24V 625mA 16V - 160V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series RUW15 (15W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 16V
Voltage - Input (Max) 160V
Voltage - Output 1 24V
Current - Output (Max) 625mA
Power (Watts) 15 W
Voltage - Isolation 5 kV
Applications ITE (Commercial) , Railway
Features Remote On/Off, OTP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 77.3%
Mounting Type Through Hole
Package / Case 8-DIP Module
Size / Dimension 2.00" L x 2.00" W x 0.79" H (50.8mm x 50.8mm x 20.0mm)
Control Features Enable, Active High
Base Product Number RUW15
Standard Package 5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1341227-RUW15SL24HC
Ultra Librarian 3D Model Ultra Librarian RUW15SL24HC CAD Model

Description

The RUW15 (15W) series isolated module is a power supply board mount DC-DC converter designed by Murata Power Solutions Inc.

  • Power (Watts): 15W
  • Features: Remote On/Off, OTP, OVP, SCP
  • Package: Tube
  • Size / Dimension: 2.00" L x 2.00" W x 0.79" H (50.8mm x 50.8mm x 20.0mm)
  • Number of Outputs: 1
  • Current - Output (Max): 625mA
  • Voltage - Input (Min): 16V
  • Voltage - Input (Max): 160V
  • Voltage - Isolation: 5 kV
  • Efficiency: 77.3%
  • Applications: ITE (Commercial), Railway
  • ECCN: EAR99
  • Mounting Type: Board Mount
